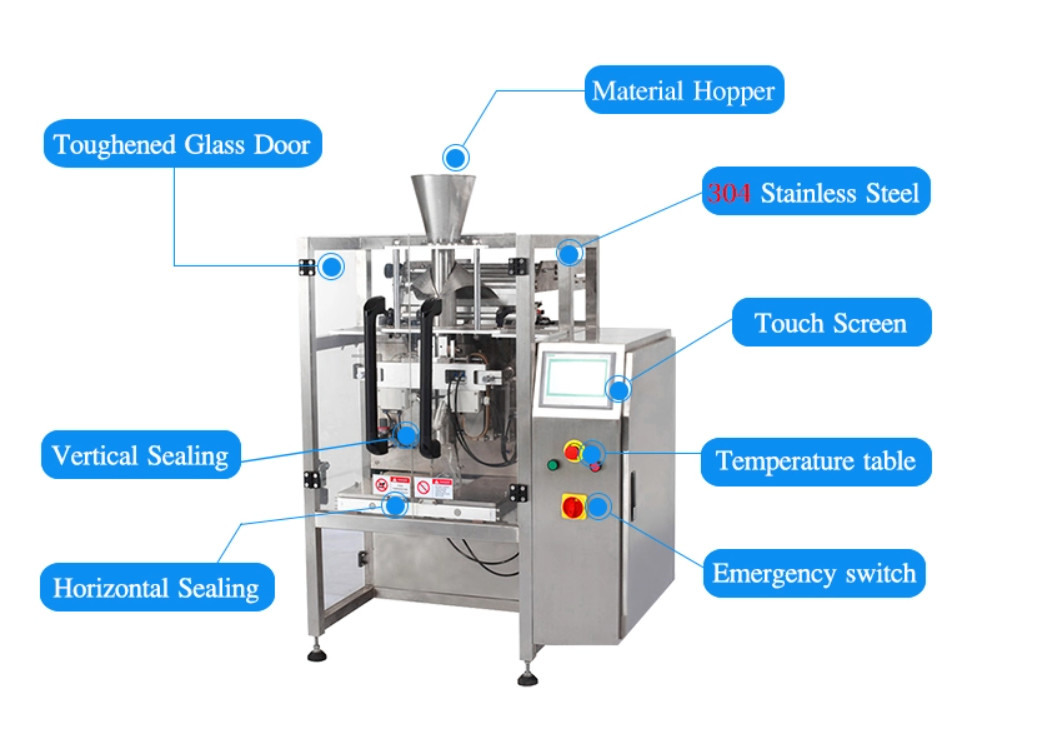

Elevator Optional Vertical Packaging Machine Form Seal 480C

  • Elevator Optional Vertical Packaging Machine Form Seal 480C
  • Elevator Optional Vertical Packaging Machine Form Seal 480C
Place of Origin Guang dong
Brand Name chic
Certification ISO CE
Minimum Order Quantity 1 SET
Packaging Details Packing inside is plastic films and outside is fumigation wooden case.Our wooden case is very strong,it can bear long time shipping on the sea.And machine with preservative film,it can stop the salt sea water enter into the machine and make the machine cor
Delivery Time 20 working days
Payment Terms L/C, T/T, Western Union
Supply Ability 200sets per year

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Name 480C Vertical Type With Piston Measuring System And Elevator Optional Multi Packing Machine Type Multi-Function Packaging Machine
Packing Material Bags, Film, Foil, Pouch Application Food, Beverage, MEDICAL, Chemical
Packing Speed 5-70bags/min Dimension 1217*1015*1343mm
Highlight

480C vertical packaging machine

,

Elevator Optional vertical packaging machine

,

480C Optional vertical form seal machine
Leave a Message
Product Description

480C Vertical Type With Piston Measuring System And Elevator Optional Multi Packing Machine



Appications:



This kind of packaging machine applicable to the packaging of liquid in the pharmaceutical, food, chemical and other industries.

Such as: sauce, soup. edible oil, liquid medicine, cream,seasoning sauce, honey, shampoo and shower gel, etc.

1, Stainless steel surrounds the part where contact to the material. The machine is accordant with the European CE standard.

2, The computer controller is the first patented product in China, an advanced frequency converter, and supports multi-language control.
3, Unique embedded sealing, enhanced heat sealing organization, intelligent temperature controller with heatbalance to suitable for various of packaging material, good performance,clear sealing texture,firm sealing .
4, pump measurement adjusting device can adjust packaging capacity during running the machine, reduce the lost of material and improve productivity.
5, Bag system with stepping motor subdivision technology, high precision, and the error is less than 0.5mm.



Standard Features

  • Bag-making, sealing, packing, print date in one operation.
  • English and Chinese screen display, operation is simple.
  • PLC computer system, function is more stable, adjustment any parameters not need stop machine.
  • It can stock ten dispose, simple to change variety.
  • Double sever motors drawing film position accurately and the speed more fast.
  • Temperature independent control system precision get to ± 1°C.
  • Horizontal, vertical temperature control, suitable for various of mix film, PE film packing material.
  • Packing type diversification, pillow sealing, standing type, punching etc.
  • Work circuinstance quiet, low noise.

>>Working Process:
The working processes include: The machine pull laminate packaging film to the pouch forming devices, and go through the vertical sealing plate, in the meanwhile, the dosing device dose the product into the pouch, then will do the horizontal sealing and cutting off. Above is the typical working process diagram.



>>Package material:
BOPP/CPP/VMCPP,BOPP/PE,PET/VMPET,PE,PET/PE,etc



Specification:



We have several Models.
Don't Worry! We can customize the suitable one for you according to your requiredment.
Just Tell us : Weight or Bag Size required.



Model
ZD-200L
ZD-320L
ZD-420L
Filling Range
1~100ml
50~200ml
150~1500ml
Packing Speed
30~80 bags/min
30~60 bags/min
5~60 bags/min
Bag Length
30~180mm
40~200mm
80~300mm
Bag Width
15~100mm
50~150mm
60~200mm
Machine Size
(L*W*H)
640*700*1580mm
1100*755*1540mm
1217*1015*1343mm
Machine Weight
300kg
350kg
650kg
Machine Power
220V,50/60HZ,1.2KW
220V,50/60HZ,1.2KW
220V,50/60HZ,2.2KW



Optinal Spare Parts:

1.Air compressor
2.Finished product conveyor
3.Checkweigher
4.Metal detector

Optional Function Devices:


1. Hole punch device
2. Tear notch device
3. Bag-linking control device
4. Air exhaust device
5. Nitrogen inflation device





​packing products

  • Elevator Optional Vertical Packaging Machine Form Seal 480C 0
  • Bag samples:
  • Elevator Optional Vertical Packaging Machine Form Seal 480C 1

FAQ

Make sample bags
If it's necessary according to your requirements, we can make sample bags for your reference.
Free machine adjustment before shipment
Our technical team will adjust the machine based on customer's request and take video to send to our customer to show the running condition of the machine.
Free Training CD to ship with machine
Our technical team will provide a trainning CD to our customer in order to train how to use the machine.
Life Long after sale service
Our factory will provide life long service, in order to help our customer to solve any problem regarding to the machine, such as replacement part, technique questions, etc.
Overseas door to door service
Our engineer overseas door to door service is available.
Warranty and after-sales service
One year warranty, 24 hours online technical service and solution can be offered.
