380V Conveyor Vacuum Seal Packing Machine IP65 Grade Automatic Sealing
| Place of Origin | China |
|---|---|
| Brand Name | CHIC |
| Certification | CE ISO |
| Minimum Order Quantity | 1 piece |
| Packaging Details | Packing inside is plastic films and outside is fumigation wooden case.Our wooden case is very strong,it can bear long time shipping on the sea.And machine with preservative film,it can stop the salt sea water enter into the machine and make the machine cor |
| Delivery Time | 15 working days |
| Payment Terms | L/C, T/T, Western Union |
| Supply Ability | 50 piece per month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Name | Automatic Continuous Vacuum Sealing Machine Meat Fish Whole Chicken Conveyor Vacuum Seal Packing Machine For Food | Condition | New |
|---|---|---|---|
| Driven Type | Electric | Machine Size | 1800*1360*1100mm |
| Voltage | 110V/220V/380V 5KW | Chamber Depth | Standard Is 100mm. Maxi 130mm Can Be Customized |
| Sealing Length | 80-210mm | Sealing Width | 10mm |
| Highlight | 380V Conveyor Vacuum Seal Packing Machine,IP65 grade Vacuum Seal Packing Machine,IP65 grade automatic vacuum sealing machine |
||
Product Description

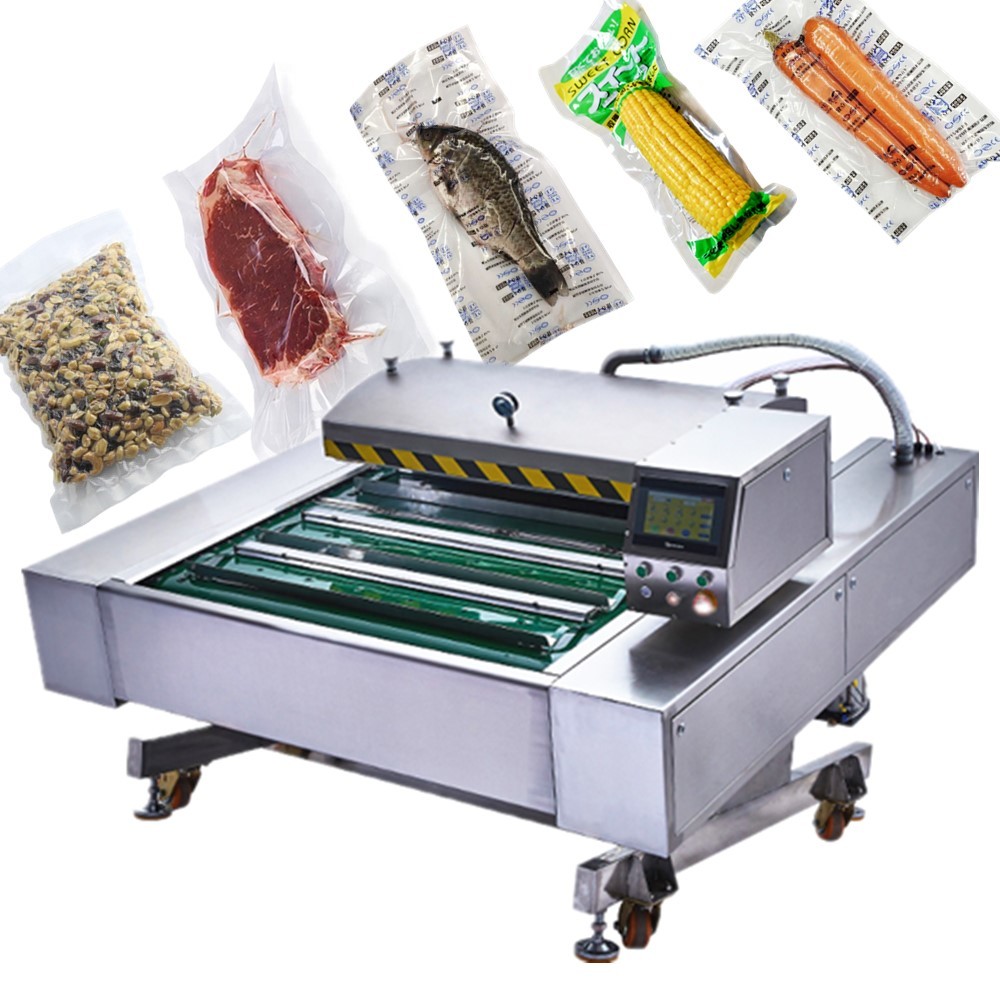

Automatic Continuous Vacuum Sealing Machine Meat Fish Whole Chicken Conveyor Vacuum Seal Packing Machine For Food
Applications:
Suitable for beans, meat, fish, sausage, cheese, fruit, vegetables, food products, hardware, electronic, face mask, medical supplies etc.
Product description:
Workers only need put bags, the machine will process vacuum, seal, and conveyor belt moving continuously.
* Bag type and material Plastic or aluminium foil bags, with zipper, folder, or 3-seal side.
Advantage:
* Full 304SS machine

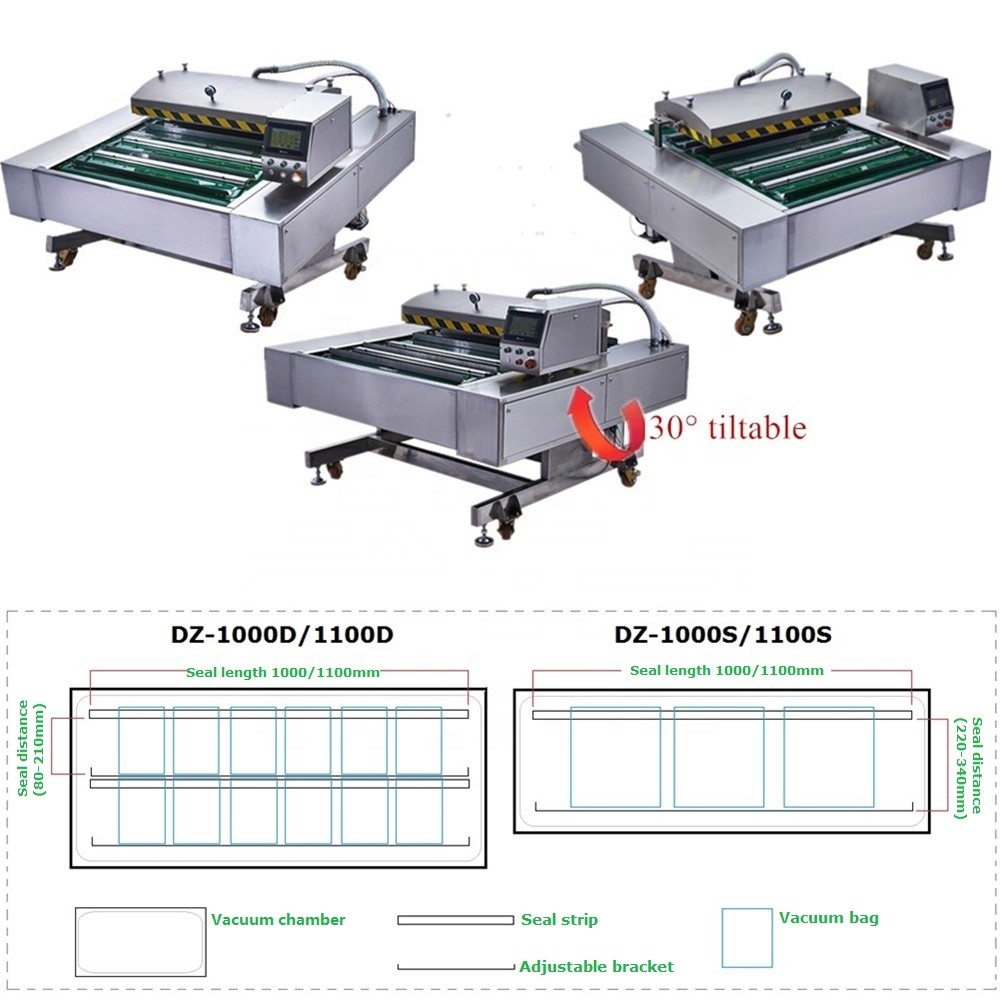

* Work table tiltable
* IP65 grade
* 35 years experience
* Packing continuously
* Sufficient spare parts
* Quality vacuum pump
* Food grade conveyor belt
* Easy to operate, clean, maintain
* Prolong shelf life of products
* Suit for different bag size and material
Machine specification:
|
Model
|
DZ-1000S
|
DZ-1100S
|
DZ-1000D
|
DZ-1100D
|
|
Seal each chamber
|
1000mm*1pcs
|
1100mm*1pcs
|
1000mm*2pcs
|
1100mm*2pcs
|
|
Seal width
|
10mm
|
10mm
|
10mm
|
10mm
|
|
Seal distance
|
80-210mm
|
80-210mm
|
210-340mm, Maxi 450mm can be customized
|
|
|
Chamber depth
|
Standard is 100mm. Maxi 130mm can be customized
|
|||
|
Vacuum pump
|
ZD and German Busch are for option
|
|||
|
Air presssure
|
0.6-0.8Mpa
|
|||
|
Cool water pressure
|
0.4Mpa
|
|||
|
Voltage
|
Standard is 380V/50HZ/3phase. Different voltage can be customized
|
|||
|
Material
|
304 Stainless Steel
|
|||
|
Overall size
|
520Kg
|
580Kg
|
580Kg
|
630Kg
|
|
Net weight
|
1800*1360*1100mm
|
1900*1360*1100mm
|
1800*1360*1300mm
|
1800*1360*1300mm
|
|
Language
|
Chinese/English for touch screen
|
|||
|
Guanratee
|
1 year
|
|||
|
Packing capacity
|
About 3 cycles per min
|
|||
Spare parts:
* Vacuum pump oil
* 20meter hose
* Several hose connect
* Glue
* Heat strip
* Cooling water pump
* Teflon cover
* Screw driver, allen key, wrench etc.
* English manual

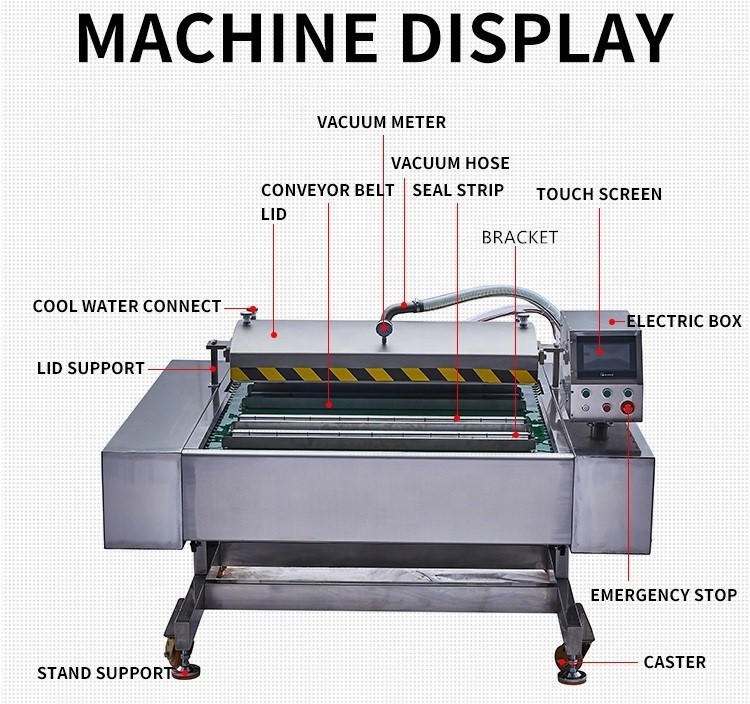

Machine details:
Samples:
Pre-Sale Service:
We will according your product feature, weight of each bag, and shape of bag make a quotation for your. Then more details we need communication sunch as material and thickness of film, dimension of bag you already have it or need we design for you, Operate language,what kind of voltage at the local.
After-Sale Service:
Warranty: 1 Year excep wearing parts ( Cutter, Belt, Horizontal and vertical Heating Tube etc)Most of components are free-replacement (PLC,Servo controller,Servo motor,Touch screen,cylinder) . Machine delivery will with a tool box, there have some parts is free.
Operation training:
1:Machine is very easy operate, delivery with manual, offer lot of photo and video when machine in assembling or disassembling.
2: Welcome to our factory learning.
3: Engineers available to service machinery overseas.
Kindly reminder:
Please let us know the follow packing details when you offer,so that we can check if this model is suitable for your case.Thank you in advance.
1. Product details
2. Bag width,bag length
3. Bag shape
4. Packing film material
5. Machine frame
FAQ
What information from client is neccessory for correct quotation?
1. What is your product?
2. The size of your bag?
How to connect with gas source?
Buyer prepare gas bottle, then connect our machine directly with hose will be ok. We leave a hole on the machine for gas connect.
What kind of air compressor shall we use?
Small air compressor with 30L gas tank, and supply 0.6-0.8Mpa air pressure will be ok.
Shipment term?
1. We ship under FOB or CIF by sea usually.
2. This machine is small, it can also be send by express, or by air.
Payment?
40% prepayment before production, balance before shipment.
Lead time?
7-15days after prepayment.
Do you test machine before shipment?
We will test and send video for confirmation before shipment.
