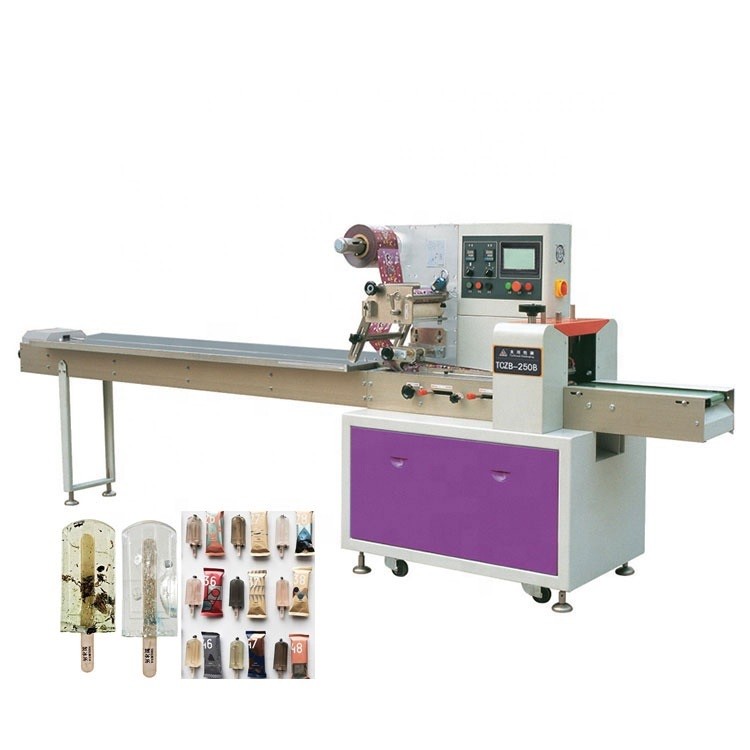

Horizontal Wrapping Flow Pack multi packaging machine Ice Cream Lolly Popsicle

  • Horizontal Wrapping Flow Pack multi packaging machine Ice Cream Lolly Popsicle
  • Horizontal Wrapping Flow Pack multi packaging machine Ice Cream Lolly Popsicle
  • Horizontal Wrapping Flow Pack multi packaging machine Ice Cream Lolly Popsicle
  • Horizontal Wrapping Flow Pack multi packaging machine Ice Cream Lolly Popsicle
  • Horizontal Wrapping Flow Pack multi packaging machine Ice Cream Lolly Popsicle
Place of Origin CHINA
Brand Name CHIC
Certification CE ,ISO
Model Number 250
Minimum Order Quantity 1 pcs
Packaging Details Packing inside is plastic films and outside is fumigation wooden case.Our wooden case is very strong,it can bear long time shipping on the sea.And machine with preservative film,it can stop the salt sea water enter into the machine and make the machine cor
Delivery Time 25 working days
Payment Terms L/C, T/T, Western Union
Supply Ability 10 piece per month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Name Pillow Type Packaging Machine Packaing Material Rolling Film, Laminated Film And Heat Sealing Laminated Paper Roll
Type Multi-function Packaging Machine Condition New
Machine Size 3770*720*1450MM Packing Speed 40-230bags/min
Bag Length 65-190mm/ 120-280mm/90-220mm/150-330mm Bag With 25-42mm/ 55-75mm/ 55-110mm
Film Width ≤250mm Film Diameter ≤320mm
Highlight

Flow Pack Multi Packaging Machine

,

Ice Cream Multi Packaging Machine

,

Lolly Popsicle Horizontal Wrapping Machine
Leave a Message
Product Description

Fully automatic horizontal wrapping flow pack packing machine ice cream lolly popsicle packaging machine

Application:



Machine can be applied to:food(snack bar,bread,cookies,ice lolly cake,chocolate,) Plastic(cutlery,tray,) hardware,Soap,sponge,tissue,card etc.

packaging various kinds of regular objects.



Specification:



Model
TCZB-250
Film width
Max.250mm
Bag length
65-190mm/ 120-280mm/90-220mm/150-330mm
Bag width
25-42mm/ 55-75mm/ 55-110mm
products High
Max.55mm
Packing speed
40-230bag/mins
Power
220V 50/60HZ 2.4KW
Dimension
3770x670x1450
Machine Weight
600kg



Main Features:

1) Dual frequency conversion control,bag length can be set and cut in one step ,saving time and film.
2) High sensitivity photoelectric eye color tracing ,numerical input of cutting sealing position for estra accuracy.
3) Positioned stop function ,without sticking knife or wasting film.
4) Simple driving system,reliable working ,convenient maintenance.
5) All control is realized through software ,easy for function adjusting and technical upgrade .

Optional accessories:

1: Date Coder

2: Touchable Screen

3: Automatic Punching Device
4: Alternative sealing patterns and notch

5: Auto labeling device 6:Deoxidizer chute device
7: Gas flushing device

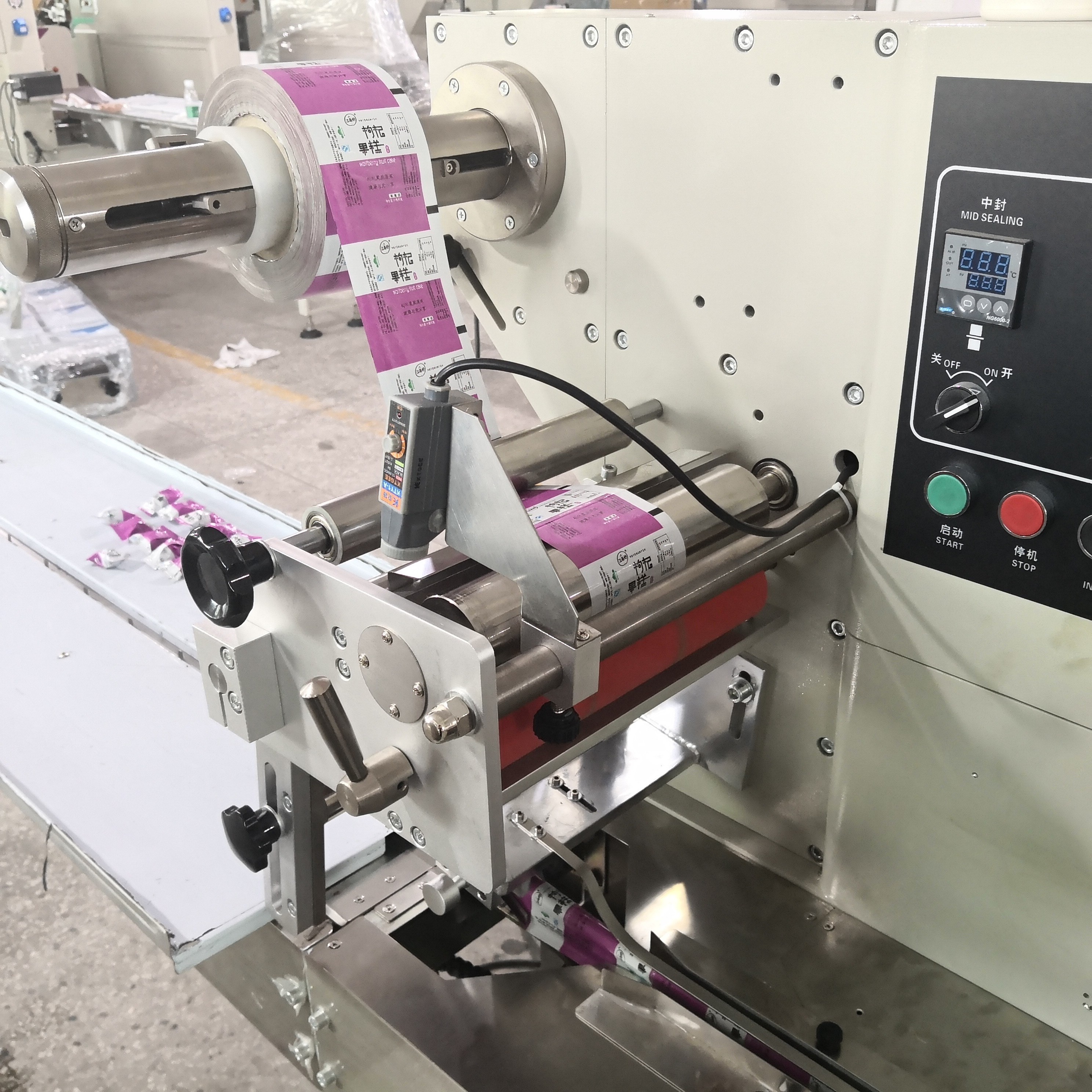

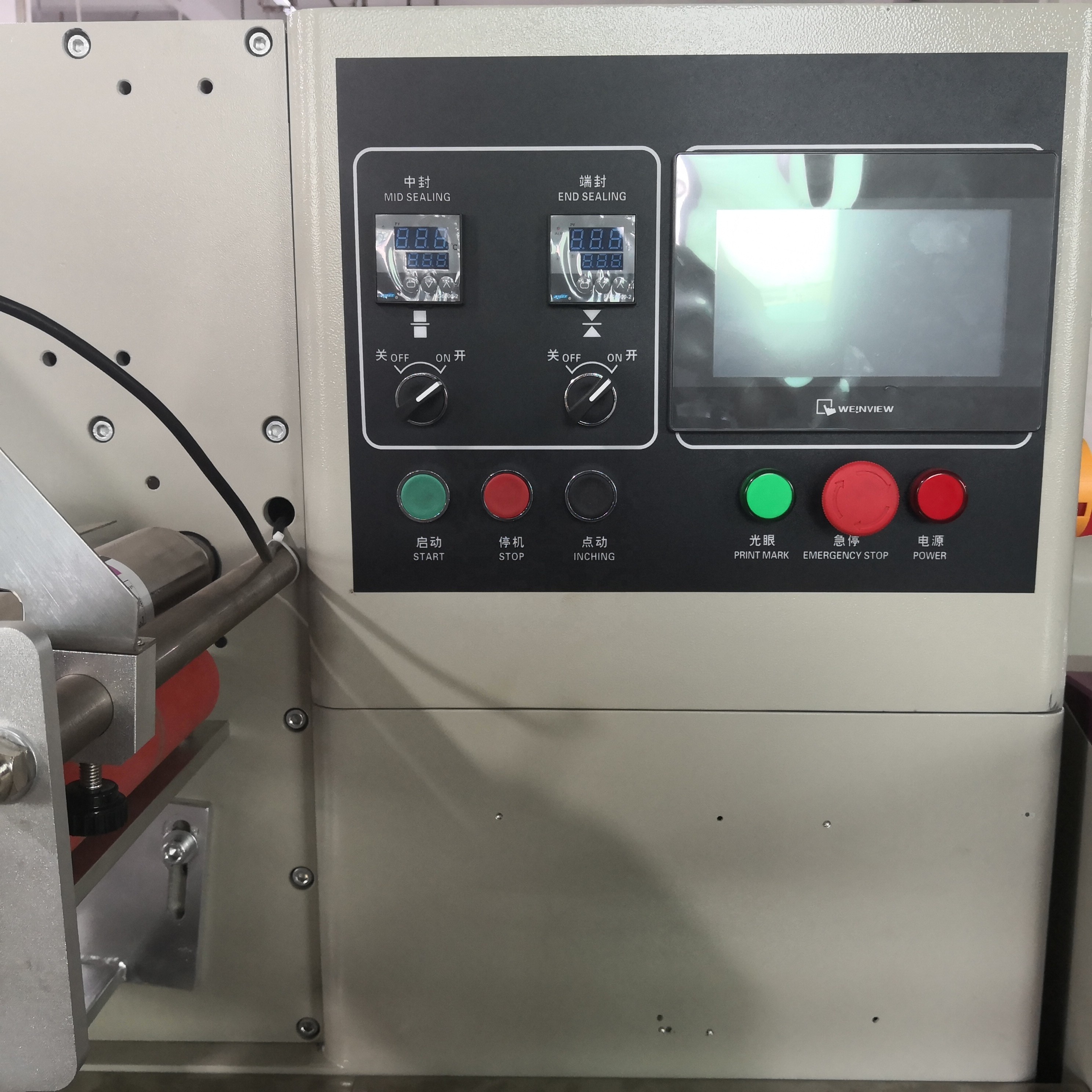

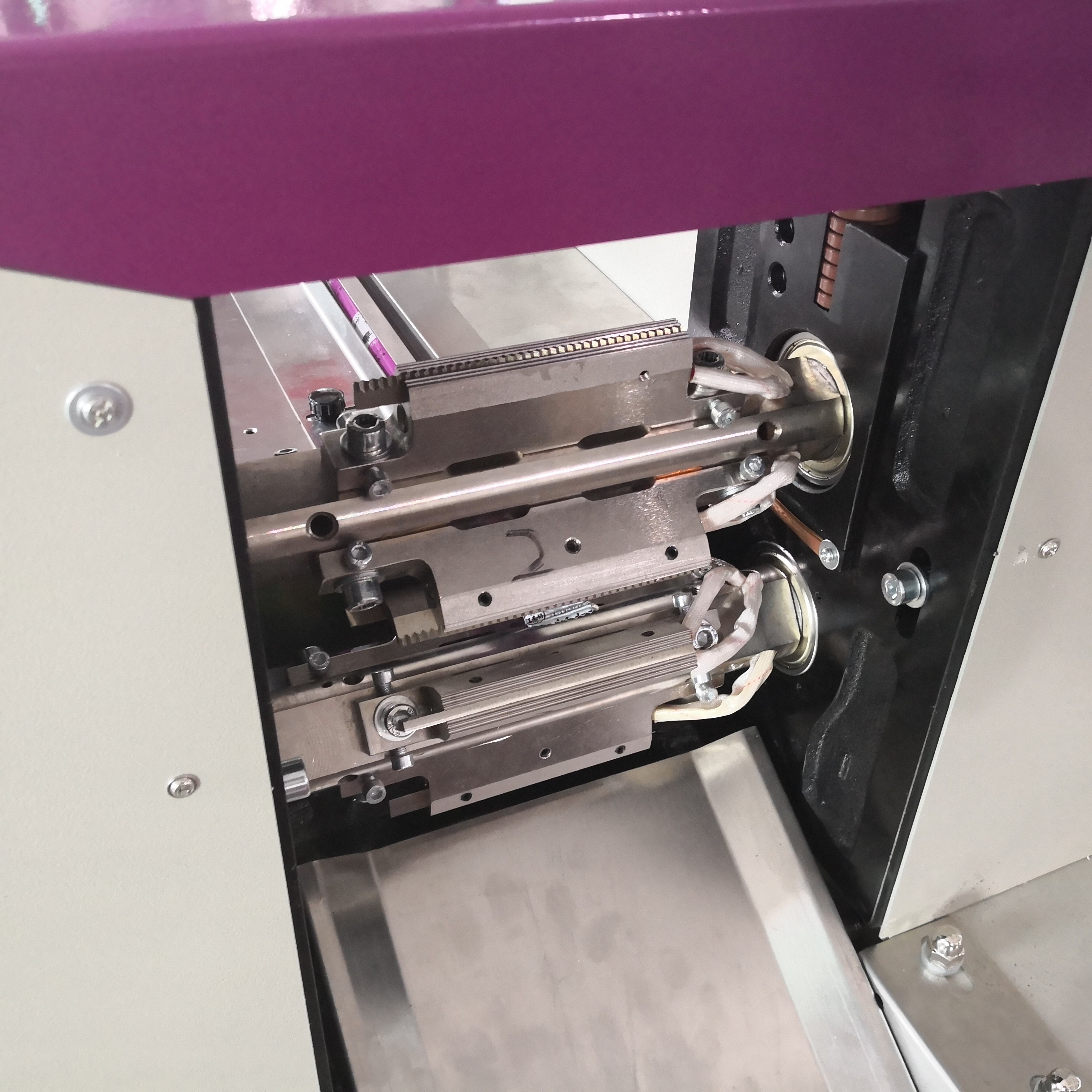

Main machine parts:





Horizontal Wrapping Flow Pack multi packaging machine Ice Cream Lolly Popsicle 0








Samples:



Horizontal Wrapping Flow Pack multi packaging machine Ice Cream Lolly Popsicle 1





Pre-Sale Service:



We will according your product feature, weight of each bag, and shape of bag make a quotation for your. Then more details we need communication sunch as material and thickness of film, dimension of bag you already have it or need we design for you, Operate language,what kind of voltage at the local.



After-Sale Service:



Warranty: 1 Year excep wearing parts ( Cutter, Belt, Horizontal and vertical Heating Tube etc)Most of components are free-replacement (PLC,Servo controller,Servo motor,Touch screen,cylinder) . Machine delivery will with a tool box, there have some parts is free.



Operation training: 1:Machine is very easy operate, delivery with manual, offer lot of photo and video when machine in assembling or disassembling. 2: Welcome to our factory learning. 3: Engineers available to service machinery overseas.



Kindly reminder:

Please let us know the follow packing details when you offer,so that we can check if this model is suitable for your case.Thank you in advance.

1. Product details

2. Bag width,bag length

3. Bag shape

4. Packing film material

5. Machine frame

FAQ



Q1: How to find a Packing machine suitable for my product?



Tell us about your product details and packing requirements.

1. What kind of product you would like to pack?

2. The bag/sachet/pouch size of you need for the product packing(the length and width).

3. The weigh of each pack you need.

4. You requirement for the machines and the bag style.



Q2: Is engineer available to serve oversea?



Yes, but the travel fee is responsible by you.

In order to save your cost, we will send you a video of full details machine installation and assist you till the end.



Q3. How can we make sure about the machine quality after placing the order?



Before delivery, we will send you the pictures and videos for you to check the machine quality.

And also you can arrange for quality checking by yourself or by your contacts in China.



Q4. We are afraid you won't send us the machine after we send you the money?



We have our business license and certificate. And it is available for us to use Trade assurance service, guarantee your money and guarantee your machine's on-time delivery and machine quality.



Q5. Can you explain me the whole transaction process ?



1.Sign the Contact

2.Arrange 30% deposit to our factory

3.Factory arrange production

4.Testing & detecting the machine before shipping

5.Inspected by customer or third agency through online or site test.

6.Arrange the balance payment before shipment.



Q6: Will you provides the delivery service?



A: Yes. Please inform us of your final destination, we will check with our shipping agent to quote the shipping cost for your reference before delivery.
