45kw Screw Air Compressor Helical 25um 68db1000mm 900kgs

  • 45kw Screw Air Compressor Helical 25um 68db1000mm 900kgs
  • 45kw Screw Air Compressor Helical 25um 68db1000mm 900kgs
  • 45kw Screw Air Compressor Helical 25um 68db1000mm 900kgs
Place of Origin CHINA
Brand Name OEM
Certification CE
Model Number CHIC-60A
Minimum Order Quantity 500
Price USD 40-45
Packaging Details packing size(L×W×H)：1000mm×1450mm×1470mm
Delivery Time 7days
Supply Ability 500Pcs/Day

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Name 45kw 60hp CHIC-60A Direct Driven Used Rotary Screw Air Compressor 8Bar Air Delivery 7.5m³/min
Electricity Three Phase 380/60 Or 440/60 (V//Hz) Pressure 8Bar
Noise Level 70±2dB Power 60HP/45KW
N.weigh 900KGS Color Blue
Highlight

45kw Screw Type Air Compressor

,

60HP 3 Phase Screw Compressor

,

60HP Hitachi Screw Compressor
Leave a Message
Product Description

45kw Screw Air Compressor Helical 25um 68db1000mm 900kgs

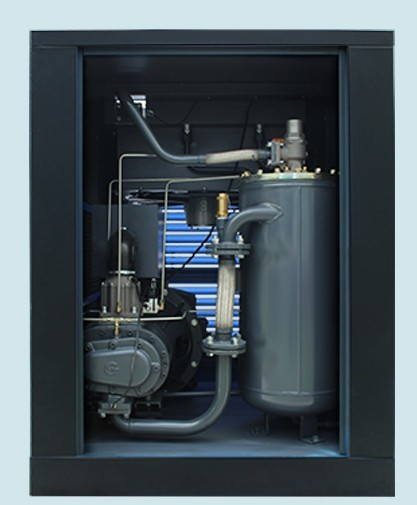

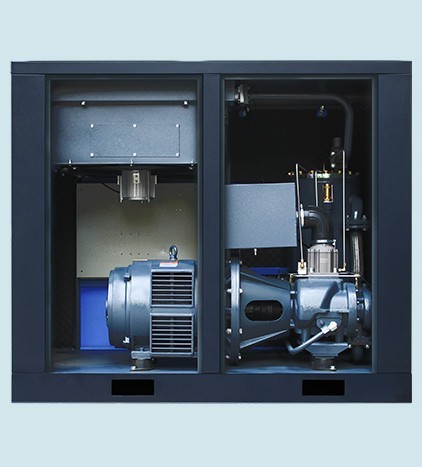

cooler:Aluminum fin structure, heat exchange effect is good, reduce the temperature of the whole machine, ensure the air compressor working temperature tends to a stable range, unique structure, to meet all kinds of environment.

oil filter:High precision glass fiber oil filter, ensure the lubricating oil into the main engine crystallization, prolong the service life and maintenance cycle of the main engine.

oil-water separator:A specially designed oil and gas separation system ensures a lower pressure differential, thus reducing energy consumption. With advanced three-stage oil and gas separation, the oil content is controlled under 3ppm to ensure the high quality of compressed air.

air end:Professional customized compression air end, improve the volume efficiency, reduce bearing load, improve the service life of the air end.

inverter:Advanced frequency conversion control system, high efficiency frequency converter, small start impact, avoid start overload.

fan:Centrifugal fan, low noise, high wind pressure, exhaust cooling, good cooling effect.

air filter:Original imported filter material, high efficiency triple air separator, effectively keep the internal cleanliness of the system.

motor:Professional customized high-efficiency permanent magnet motor, protection level up to IP54.

inlet valve:Unique intake channel design, intake adjustment range 0-100%, capacity adjustment valve adjustment, small pressure loss, stable action, long service life.



45kw Screw Air Compressor Helical 25um 68db1000mm 900kgs 0







Technical parameters



Model CHIC-60A
Power 60HP/45KW
FAD: (M3/MIN) 7.5
Pressure 8 bar
Cooling Air-cooling
Lubricant 20L
Noise level 68±2dB
Drive method Direct drive type
Discharge temperature Environment Temp+15℃-18℃
Electricity Three phase 380/60 or 440/60 (V//Hz)
Starting method Y-△ starter
Air outlet: Pipe diameter(inch)

G1/2″
Oil content of air <2ppm
Dimension 1000MM*1450MM*1470MM
Net weight 900KGS



Packaging & Shipping



Packaging Details
Standard export carton or plywood case 1pcs/box
Port
Shanghai/Ningbo



45kw Screw Air Compressor Helical 25um 68db1000mm 900kgs 1

Our services



1.We promise to reply your inquiry relational our product within 24hours.

2.OEM&ODM service for your unique idea with absolutely convenient.

3.Experienced foreign trader with professional product knowledge.

4.Value on business credite , promise to protect your sales data, design,patent information.

5. Sample & OEM service is available

6. After-sales service. any question will be settled within 3 days



FAQ



Q1. Are you a factory?
A. Yes, We are professional air compressor factory with more than 10 years experience.

Q2. How can i get a quotation?
A. Leave us message with your purchase requemets and we will reply you within one hour on working time. And you may contact us directly by Trade Manager

Q3. How many design do you have? How can i get your catalog?
A. We have hundreds of advanced design for your choice , And we have new design every year. Just tell us what kind of product you need and we will provide you plenty of choice,

Q4. How about your price?
A. Send me details about what you need, you will get the best price in China. The price is competitive over the world.

Q5. What's the delivery time and what's the package?
A. Normally the delivery time is about 25-35 days, Al our products are packed with sea worthy package.
