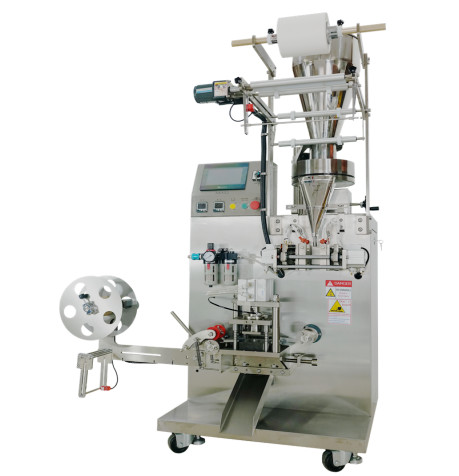

Round Tea Bag Packing Machine 60 Bag Min Tea Bag Maker Machine

Round Shape Tea Bag Packing Machine Tea Bag Maker Machine 60 Bag Min

Feature:

-This machine is suitable for particles material,such as:tea,coffee,food,medicine and chemical products.

-All the works of bag making,measuring,filling,sealing,cutting and counting can be done automatically.

-The touch screen operation, PLC control, drive stepper motor to control the bag length,stable

performance,easy to adjust and accurate detection.

-Packing material : Tea filter paper and so on.

Pack Material:

paper/plastic,plastic/plastic,plastic/aluminum/plastic,paper/aluminum/plastic.tea paper,thread,tag

Technique Performance

Technical Parameters

Measuring Scope: 1- 5 g ( 2 - 10 ml )

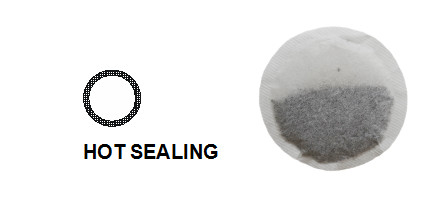

Bag Size:φ 70mm

Packing Speed:10 - 40 bags/min

Dimension ( L * W * H ):1160 * 850 * 1740 mm

Weight:400 kg

Total Power:220V / 50Hz / 1.6kw

Gas source:≥0.6m³ / min

Pre-Sale Service:

We will according your product feature, weight of each bag, and shape of bag make a quotation for your. Then more details we need communication sunch as material and thickness of film, dimension of bag you already have it or need we design for you, Operate language,what kind of voltage at the local.

After-Sale Service:

Warranty: 1 Year excep wearing parts ( Cutter, Belt, Horizontal and vertical Heating Tube etc)Most of components are free-replacement (PLC,Servo controller,Servo motor,Touch screen,cylinder) . Machine delivery will with a tool box, there have some parts is free.

Operation training:

1: Machine is very easy operate, delivery with manual, offer lot of photo and video when machine in assembling or disassembling.

2: Welcome to our factory learning.

3: Engineers available to service machinery overseas.

Kindly reminder:

Please let us know the follow packing details when you offer,so that we can check if this model is suitable for your case.Thank you in advance.

1. Product details

2. Bag width,bag length

3. Bag shape

4. Packing film material

5. Machine frame

FAQ

Q1: How to find a Packing machine suitable for my product?

Tell us about your product details and packing requirements.

1. What kind of product you would like to pack?

2. The bag/sachet/pouch size of you need for the product packing(the length and width).

3. The weigh of each pack you need.

4. You requirement for the machines and the bag style.

Q2: Is engineer available to serve oversea?

Yes, but the travel fee is responsible by you.

In order to save your cost, we will send you a video of full details machine installation and assist you till the end.

Q3. How can we make sure about the machine quality after placing the order?

Before delivery, we will send you the pictures and videos for you to check the machine quality.

And also you can arrange for quality checking by yourself or by your contacts in China.

Q4. We are afraid you won't send us the machine after we send you the money?

We have our business license and certificate. And it is available for us to use Trade assurance service, guarantee your money and guarantee your machine's on-time delivery and machine quality.

Q5. Can you explain me the whole transaction process ?

1. Sign the Contact

2. Arrange 30% deposit to our factory

3. Factory arrange production

4.Testing & detecting the machine before shipping

5. Inspected by customer or third agency through online or site test.

6. Arrange the balance payment before shipment.

Q6: Will you provides the delivery service?

A: Yes. Please inform us of your final destination, we will check with our shipping agent to quote the shipping cost for your reference before delivery.
