Hot Heat Shrink Multi Packaging Machine For Biscuits Cartons 15m/min
| Place of Origin | CHINA |
|---|---|
| Brand Name | CHIC |
| Certification | CE ,ISO |
| Minimum Order Quantity | 1 pcs |
| Packaging Details | Packing inside is plastic films and outside is fumigation wooden case.Our wooden case is very strong,it can bear long time shipping on the sea.And machine with preservative film,it can stop the salt sea water enter into the machine and make the machine cor |
| Delivery Time | 25 working days |
| Payment Terms | L/C, T/T, Western Union |
| Supply Ability | 10 piece per month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Name | Automatic Shrink Packing Machine | Type | Multi-function Packaging Machine |
|---|---|---|---|
| Dimension | 1300X1600X1870mm | Manner Of Packing | Two Sides Open |
| Conveyor Speed | 0-15m/min | Conveyor Lading | Max. 30kg |
| Shrink Transport Belts Material | Main Is PTFE Coated Roller Chain/Teflon Coated Me | Process | Wrapping/Packing+Sealing+Shrinking/Contracting |
| HS Code | 84224000 | Main Control Components | PLC/Relay/Sensor/Motor/Frequency Conversion |
| Highlight | Hot Heat Shrink Multi Packaging Machine,Biscuits Cartons Shrink Packing Machine,Automatic Multi Packaging Machine 15m/min |
||
Product Description
Automatic Shrink Packing Machine for Canning Box Multi Packing Machine
Application scope:
Pharmaceutical,food,stationery,cosmetics and other industries in the multiple rows of small bottles or more rows of square box.With automatic labeling machines.
Technical information:
| Technical data | ZWJ-600B |
| Sealing type | sleeve sealing |
| Power supply | 380V/50-60Hz/3phase |
| Max product size | 420(L) x 200(W) x 150(H) mm |
| Packing capacity | 8 - 20 packs/min |
| Film type | polyethylene (PE) film |
| Max film size | 530 (width) x 280mm(outer diameter) |
| Power consumption | max. 9.5kw |
| Shrink tunnel oven size | 1250mm(L) x 600(W) x 220(H) mm |
| Tunnel conveyor speed | variable, 30m/min |
| Tunnel conveyor | teflon mesh belt or stainless steel mesh conveyor |
| Working height | 850-950 mm |
| Air pressure | 0.5MPa (5 bar) |
| Sealing knife | Teflon coated alloyed knife with permanently heated bar |
| Main control components | Siemens PLC and touch screen, Omron temperature controller, relay and sensor |
| Machine main material | powder coated carbon steel |
| Machine dimensions | 1870x1600x1300mm;1600x600x1300mm |
| Machine weight | 600kg |
Feature
1.lt adopts PLC control,use Korea and other international famous brands of electrical components to make the machine run more reliable and stable.
2.The film packaging cost can be reduced.
3.Special transport structure,to avoid damaging the bottle.
4.seal equipped with special protection devices,can effectively prevent accidental cutting packaging.
5.The world's leading cold cutting technology to reduce power consumption and ensure closure of all fast and firmly.
6.Unique hot air circulation system,energy saving and shrink more tightening and beautiful.
7.The special belt transmission structure can rectify completely.
Performance characteristics:
1. Cuff packing.
2. Film packaging can reduce costs.
3. Special transmission structure to avoid bottle damage.
4. Special protective devices are installed at the seal, which can effectively prevent wrongcut packaging.
5. International leading cold cutting technology to reduce power consumption and ensure fast and firm sealing.
6. Unique hot air circulation system can save energy and make shrinkage more tight and beautiful.

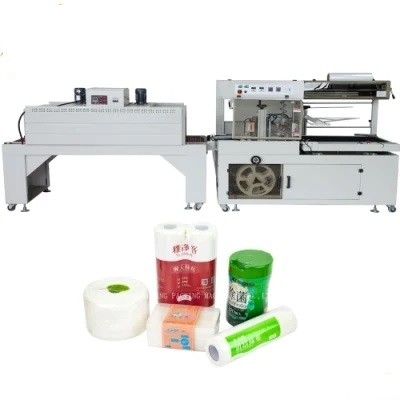

Machine pictures:
Samples:
Customizable content sequence number description
(1) the cutter size can be customized.
(2) shrinkage furnace size can be customized.
(3) High efficiency shrinkage furnace is optional.
(4) safety guardrail can be customized.
(5) the extended transport can be customized.
(2) shrinkage furnace size can be customized.
(3) High efficiency shrinkage furnace is optional.
(4) safety guardrail can be customized.
(5) the extended transport can be customized.
(6) electrical brands can be customized.
FAQ
Q1: How to find a Packing machine suitable for my product?
Tell us about your product details and packing requirements.
1. What kind of product?
2. Production size or bag/sachet/pouch size of you need for the product packing ( the length, width).
3. The weigh of each pack you need.
4. You requirement for the machines and the bag type.
Q2: Are you a real factory/manufacturer?
Of course. Our factory is inspected by third party. We much welcome you to visit us and free to pick you up form hotel.
You don’t have time? We can use live video and you can visit us on line.
Q3: Is engineer available to serve oversea?
Yes, we can send engineers to your factory but all the fee will be on buyers.
In order to save your cost, we will send you a video of full details machine installation and assist you till the end.
Q4. How can we make sure about the machine quality after placing the order?
Before delivery, we will running half hour of the machine to checking the stability and sending you the testing video until you satisfy. We will setting all the parameters well.
And also you can arrange for quality checking by yourself or by your contacts in China.
Q5. We are afraid you won't send us the machine after we send you the money?
We have our business license and certificate. And it is available for us to use trade assurance service, protect your money, machine quality and delivery are guarantied
Q6. Can you explain me the whole transaction progress ?
1. Sign the Contact/order on we have trade assurance.
2. Arrange 30% deposit to our factory
3. Factory arrange production
4.Testing & detecting the machine before shipping
5. Inspected by customer or third agency through online or site test.
6. Arrange the balance payment before shipment.
Q7: Will you provides the delivery service?
A: Yes. Please inform us of your final destination, we will check with our shipping agent to quote the shipping cost for your reference before delivery.
