8 Nozzles Pouch Juice Multi Packing Machine Filling Sealing 220V 50HZ

  • 8 Nozzles Pouch Juice Multi Packing Machine Filling Sealing 220V 50HZ
  • 8 Nozzles Pouch Juice Multi Packing Machine Filling Sealing 220V 50HZ
Place of Origin CHINA
Brand Name CHIC
Certification CE ,ISO
Minimum Order Quantity 1 pcs
Packaging Details Packing inside is plastic films and outside is fumigation wooden case.Our wooden case is very strong,it can bear long time shipping on the sea.And machine with preservative film,it can stop the salt sea water enter into the machine and make the machine cor
Delivery Time 25 working days
Payment Terms L/C, T/T, Western Union
Supply Ability 10 piece per month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Name Stick Pouch Fill And Seal Packaging Machine Packaing Material Expansion Bags, Inflation Bags, Bar Milk Bags, Bar Yogurt Bags, Preformed Bags
Bag Material PE Or Nylon, BOPP Laminated LDPE, Various Shapes Preformed Bags Packing Speed 3500 To 4000 Packs/bags/pouches/sachets Per Hour
Machine Size 1300*850*1250mm Filling Volume 50-500ml (Custom)
Film Thickness >0.18mm Film Width ≤250mm
Filling Accuracy ≤±1% HS Code 8422400000
Highlight

Pouch Juice Multi Packing Machine 50HZ

,

8 Nozzles Juice Filling Sealing Machine

,

Multifunction Pouch Juice Filling Machine
Leave a Message
Product Description

pouch juice filling machine/juicer filling machine/juice filling and sealing machine



Application:



The stick pouch is a popular international plastic bag. It is also called Expansion Bags, inflation bags, bar milk bags, bar yogurt bags, preformed bags, Plastic Bag, Stand Up Pouch, Pre-Shaped Bag, Spout Pouch, Formed Bag, Bottle Shape Pouch, Fruit Shape Pouch, Fruit Shape Bag, Various Shape bag, Sachet, Doypack, tube package bags, etc.



The 8 nozzles filling machine is a novel form of packaging, diverse modeling, reliable measurement, seal firm, easy to use, and low cost packaging materials, etc.



Shape pouch filling packing machine is widely used in dairy products and any different fluid viscosity products and such as drinks, mineral water, pure water, dairy, milk, yogurt, soy milk, jelly, beverage, lactic acid drinks, Vegetable Protein Drinks, Natural Fruit Juice, Coconut juice, pineapple juice, strawberry juice, Fruit Jam, seasoning, Ice Pop, honey, honey sticks, Tomato Sauce, Salad Dressing, Japanese egg tofu, soy sauce, cooking oil, coconut oil, cleaning supplies, alcohol, Viscous liquid, semi-fluid, and liquid chemical, big viscosity semi-fluid, grainy orange products, Coconut, pulp milk alcohol cream, shampoo, daily chemicals, liquid laundry detergent, cosmetic cream, liquid soap, foaming liquid, food industry and chemical industry, medicine, pesticide and other industries,low concentration liquid, large or high viscosity liquid etc.



Specification:



Model KY-8/KY-8A
Packing rate 3500 to 4000 bags per hour
Filling nozzles 8 nozzles/8 filling head/8 head needle (can be customized)
Workstation 2
Bag material PE or Nylon, BOPP laminated LDPE, various shapes preformed bags
Film thickness >0.18mm
Filling volume 50-500ml (Custom)
Filling accuracy ≤±1%
Air Pressure 0.6-0.8 Mpa
Air Consumption 0.25-0.50 m3/min
Power 0.8-1.6KW
Power input 220V 50HZ(Custom)
Net weight 80KG
Overall dimension(L*W*H) 1100*700*1050mm
Gross weight 120KG
Packaging dimension(L*W*H) 1300*850*1250mm



Features for Pouch filling sealing machine

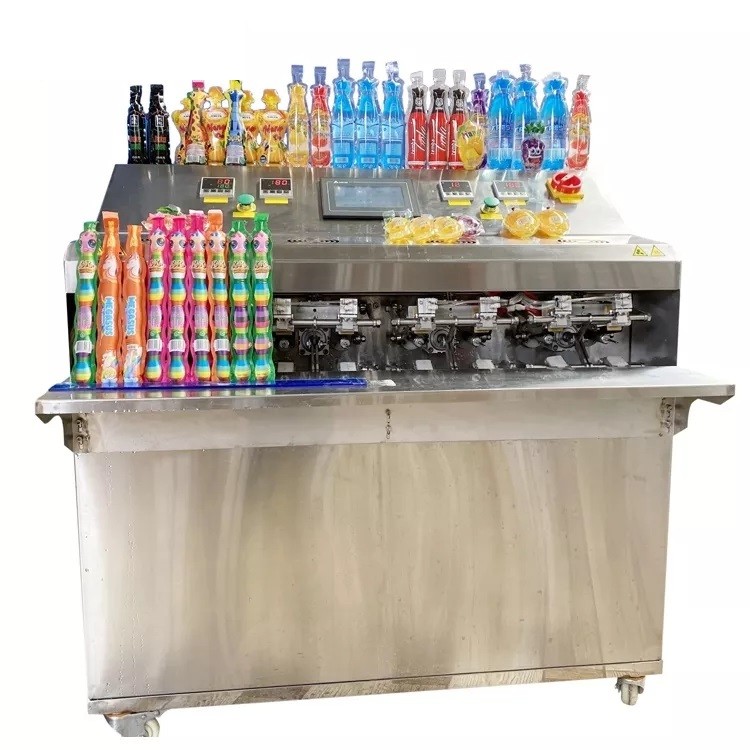

8 Nozzles Pouch Juice Multi Packing Machine Filling Sealing 220V 50HZ 0

1. It adopts 304 stainless steel, and PLC system control. English operation interface. It is automatic entire process by PLC control system, such as filling, sealing, dropping bags, etc.

2. It adopts airless pressurized filling. It can effectively avoid secondary pollution. The filling volume is adjustable.

3. Measure and number on touch screen is adjustable by pressing the button. Easy to operation.

4. Unique sealing part design, seal suitable location and firm bag and avoids queeze hand. It add Teflon material in the sealed parts when you want to seal PE or Nylon pouch.

5. Unique filling nozzles and anti-drip valve design, no leaking filling and save cost.

6. Comprehensive safety design, with earth-leakage protection.

7. Unique sanitary pneumatic forced pump design. It improves the filling volume control accuracy less than ±1.

8. MITSUBISHI PLC system, other CHINT electrical equipment, AIRTAC pneumatic components, food-grade silicone tube.







Main machine parts:

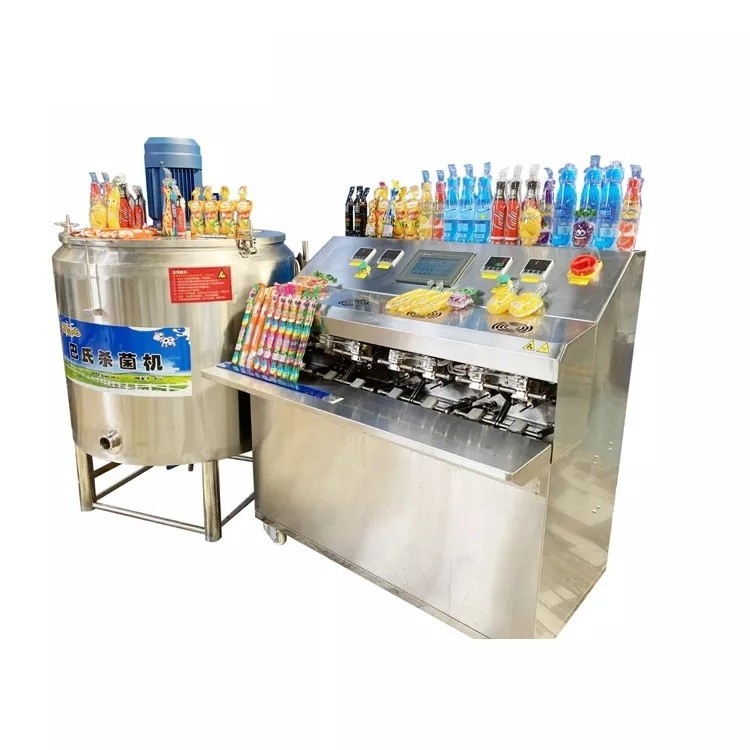

8 Nozzles Pouch Juice Multi Packing Machine Filling Sealing 220V 50HZ 1




Pre-Sale Service:



We will according your product feature, weight of each bag, and shape of bag make a quotation for your. Then more details we need communication sunch as material and thickness of film, dimension of bag you already have it or need we design for you, Operate language,what kind of voltage at the local.



After-Sale Service:



Warranty: 1 Year excep wearing parts ( Cutter, Belt, Horizontal and vertical Heating Tube etc)Most of components are free-replacement (PLC,Servo controller,Servo motor,Touch screen,cylinder) . Machine delivery will with a tool box, there have some parts is free.





Kindly reminder:

Please let us know the follow packing details when you offer,so that we can check if this model is suitable for your case.Thank you in advance.

1. Product details

2. Bag width,bag length

3. Bag shape

4. Packing film material

5. Machine frame

FAQ



Q1: How to find a Packing machine suitable for my product?



Tell us about your product details and packing requirements.

1. What kind of product you would like to pack?

2. The bag/sachet/pouch size of you need for the product packing(the length and width).

3. The weigh of each pack you need.

4. You requirement for the machines and the bag style.



Q2: Is engineer available to serve oversea?



Yes, but the travel fee is responsible by you.

In order to save your cost, we will send you a video of full details machine installation and assist you till the end.



Q3. How can we make sure about the machine quality after placing the order?



Before delivery, we will send you the pictures and videos for you to check the machine quality.

And also you can arrange for quality checking by yourself or by your contacts in China.



Q4. We are afraid you won't send us the machine after we send you the money?



We have our business license and certificate. And it is available for us to use Trade assurance service, guarantee your money and guarantee your machine's on-time delivery and machine quality.



Q5. Can you explain me the whole transaction process ?



1.Sign the Contact

2.Arrange 30% deposit to our factory

3.Factory arrange production

4.Testing & detecting the machine before shipping

5.Inspected by customer or third agency through online or site test.

6.Arrange the balance payment before shipment.



Q6: Will you provides the delivery service?



A: Yes. Please inform us of your final destination, we will check with our shipping agent to quote the shipping cost for your reference before delivery.
