Stick Bag Multi Packaging Machine For Liquid And Sauce Paste Products
Place of Origin | Shanghai |
---|---|
Brand Name | chic |
Certification | ISO CE |
Model Number | DC-65CX |
Minimum Order Quantity | 1 SET |
Packaging Details | Packing inside is plastic films and outside is fumigation wooden case.Our wooden case is very strong,it can bear long time shipping on the sea.And machine with preservative film,it can stop the salt sea water enter into the machine and make the machine cor |
Delivery Time | 7 working days |
Payment Terms | L/C, T/T, Western Union |
Supply Ability | 200sets per year |

Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xName | YP-65CX Liquid And Paste Products Packaging Machine | Type | Multi-Function Packaging Machine |
---|---|---|---|
Packing Material | OPP/CPP. OPP/CE, MST/PE | Application | Food, Beverage, MEDICAL, Chemical |
Sachet Width | 30-130mm | Sachet Length | 30-170mm |
Filling Arrange | 1-100ml | Film Thickness | 0.03-0.06mm |
Speed | 30-60bags/min | ||
Highlight | Stick Bag Multi Packaging Machine,Sauce Paste Products Multi Packaging Machine,Multi Packing Machine 60bags/min |
YP-65CX Automatic Tomato Paste Multi Packaging Machine Small Bag Oil Honey Packet Machine Chilli Sauce Packing Machine
Appications:
This machine is suitable for the food, medicine, chemical industry, cosmetics industry of particles of measurement packaging.
Machine features:
1. The machine is suitable for the food,medicine,chemical industry, cosmetics industry of liquids , sauce of measurement packing.
2. All the works of bags making,measuring,filing,sealing,cutting and counting can be done automatically,at the same time . It can also according to the demand of customers printing batch number and other functions (optional)
3.The touch screen operation,PLC control, drive stepper motor to control the bag length,stable performance easy to adjust and accurate detection.Choose the intelligent temperature controller and PID control to ensure the error range of temperature controlled within 1 degree Centigrade
4. Packingmaterial:BOPP/Polyethylene,Aluminium/Polyethylene,Paper/Polyethylene
Polyester/Aluminizer/Polyethylene,Nylon/CPP and so on.
Specification:
Type | YP-65CXJ |
Bag length | 30-170mm |
Bag width | 30-130mm |
Packing Speed | 2100-3800 bags/hour |
Measuring range | 3-100ml (1-100G) |
Voltage power | 220V 50/60Hz/1.4Kw |
Sealing methods | back sealing/three sides sealing/four sides sealing |
Weight | 300kg |
Dimension(L x W x H) | 900*1100*1590mm |
Optinal Spare Parts:
1. Air compressor
2. Finished product conveyor
3. Checkweigher
4. Metal detector
Optional Function Devices:
1. Hole punch device
2. Tear notch device
3. Bag-linking control device
4. Air exhaust device
5. Nitrogen inflation device

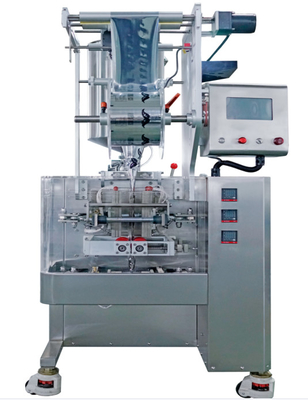

Machine pictures:
Products:
FAQ
Q1: How to find a Packing machine suitable for my product?
Tell us about your product details and packing requirements.
1. What kind of product you would like to pack?
2. The bag/sachet/pouch size of you need for the product packing(the length and width).
3. The weigh of each pack you need.
4. You requirement for the machines and the bag style.
Q2: Is engineer available to serve oversea?
Yes, but the travel fee is responsible by you.
In order to save your cost, we will send you a video of full details machine installation and assist you till the end.
Q3. How can we make sure about the machine quality after placing the order?
Before delivery, we will send you the pictures and videos for you to check the machine quality.
And also you can arrange for quality checking by yourself or by your contacts in China.
Q4. We are afraid you won't send us the machine after we send you the money?
We have our business license and certificate. And it is available for us to use Trade assurance service, guarantee your money and guarantee your machine's on-time delivery and machine quality.
Q5. Can you explain me the whole transaction process ?
1.Sign the Contact
2.Arrange 30% deposit to our factory
3.Factory arrange production
4.Testing & detecting the machine before shipping
5.Inspected by customer or third agency through online or site test.
6.Arrange the balance payment before shipment.
Q6: Will you provides the delivery service?
A: Yes. Please inform us of your final destination, we will check with our shipping agent to quote the shipping cost for your reference before delivery.FAQ
