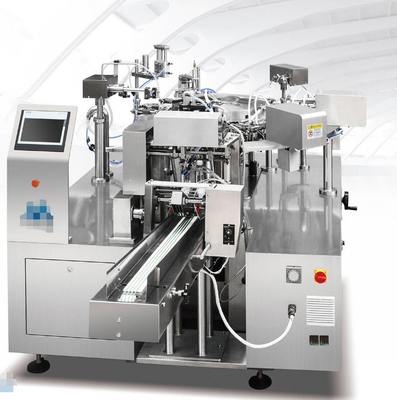

20 - 40bags/min Multi Packing Machine M Type Bag Feeding And Packaging Machine

PACKAGING PROCESS

Station 1 Bag feeding Feed many pouches or bags in the bag magazine, our main bag magazine can move up and down, you can feed bags very easily when it moved down, and when it moved up, there are a mechanical arm with two vacuum caps will take bag up and then transmit it to the mechanical gripper on the rotary table.

Station 2 Date Printing (option)

Station 3 Opening To open stand (flat) pouches from top and bottom with two sets vacuum caps.

Station 4 Filling 1 Measured its volume or weight by scales.There are an opening detection device insert into the open bag or pouch to expanding it and detect if it is open or not.No open no filling no sealing

Station 5 Filling 2 Nitrogen or fill another product

Station 6 Sealing 1 To seal the pouch or bag mouth with a couple of heat sealing air bar, the sealing pattern you can option, net or straight lines

Station 7 Sealing 2 Seal the second time to make the sealing more perfectly.

Station 8 Forming and output .To make the sealing stable and preventing from wrinkling with a couple of cold press, then output the finished production automatically.

SAFETY

No bag – no filling- no sealing, machine alarm

Bag opening miss- no filling-no sealing, machine alarm

Machine stop or alarm when the air pressure is abnormal

Error position display at the control panel

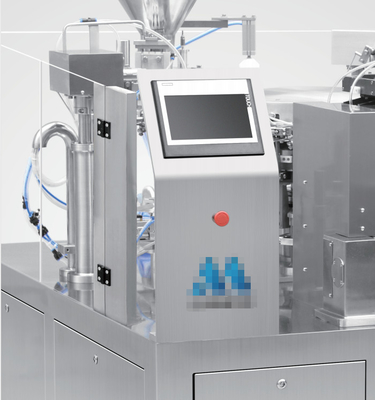

Control panel locate on the right side top of the machine.Outside of the machine and all the parts which touch production all made by stainless steel.There are several safety doors made by aluminum Profile Frame.Machine surface can be wash by water and brush by cloth.

Technical parameters
