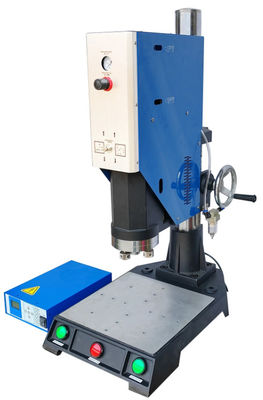

2600W 15KHZ Normative Plastic Welding Machine

Overview

Product description:

2600W 15KHZ Normative Plastic Welding Machine

Working principle:

When the ultrasonic wave acts on the thermoplastic plastic contact surface, it will produce tens of thousands of times of high-frequency vibration per second. This high-frequency vibration reaches a certain amplitude, and the ultrasonic energy is transmitted to the welding area through the welding horn. Because the acoustic resistance of the welding area is large, the local high temperature will be generated.And because of the poor thermal conductivity of the plastic, it can not be distributed in time and gathered in the welding area, which causes the contact surface of the two plastics to melt rapidly. After adding a certain pressure, it will be fused into one.When the ultrasonic stops, let the pressure continue for a while to hold the pressure to make it solidify and shape, so that a solid molecular chain is formed to achieve the purpose of welding, and the welding strength can be close to the strength of the raw material.

Feature:

1. Ultrasonic plastic welding machine imported piezoelectric ceramic transducer, so it has strong and stable power output;

2. IC automatic protection to make sure low circuit failure rate;

3. The machine has fuselage back locking device and hom level adjustment design. It is is simple and quick to change mode.

4. The frame mode is simple and quick for plastic welding, preparations, forming, riveting, welding, excision and suture operation. Just change the welding head can implement different functions;

5. Soundproof equipment can be installed to effectively control noise .

Application:

Applicable welding materials:

Applicable to ABS, PC, PE, PP, PS, PVC, SAM, acrylic, cellulose, nylon, metal etc.

Model NO.              MP-3066

Voltage                   220-380V 50 - 60Hz

Frequency              35KHz

Power                     3000W

Air pressure            4-6Kg/cm*2

Weight                    50kg

Sizes                       800*1000*1850mm

Color                       Custom

Packaging & Delivery

Packaging: Standard export carton or plywood case 1pcs / box

Port: China

1. Fumigation wooden case for ultrasonic machines (outside packaging) to bear long time shipping on the sea.

2. Preservative film for ultrasonic system (inner packaging): to stop salt sea water, dust, moisture and insects from entering the machine; Also to make sure the machine corrosion resistance.

Our services

1.We promise to reply your inquiry within 24  hours.

2.OEM & ODM services for your unique idea will fully accepted.

3.Experienced trader with professional product knowledge.

4.Value on business credit and promise to protect your sales data, design and patent information.

5. After-sales service will be provided. any question will be settled within 3 days.

FAQ

Q1: How to find a Packing machine suitable for my product?

Tell us about your product details and packing requirements.
1. What kind of product you would like to pack?
2. The bag / sachet / pouch size of your need for the product packing (the length and width).
3. The weight of each pack you need.
4. You requirement for the machines and the bag style.

Q2: Is engineer available to serve oversea?

Yes, but the travel fee is responsible by you. In order to save your cost, we will send you a video of full details of machine installation and assist you till the end.

Q3. How can we make sure about the machine quality after placing the order?

Before delivery, we will send you the pictures and videos for you to check the machine quality. And also you can arrange for quality checking by yourself or by your contacts in China.

Q4. We are afraid you won't send us the machine after we send you the money?

We have our business license and certificate. And  also it is available for us to use Trade assurance service to guarantee your money, machine quality and make sure the machine is delivered on-time.

Q5. Can you explain me the whole transaction process ?

1.Sign the Contact.
2.Arrange 30% deposit to our factory.
3.Factory arrange production.
4.Testing & detecting the machine before shipping.
5. machine will be inspected by customer or third agency through online or site test.
6.Arrange the balance payment before shipment.

Q6: Will you provide the delivery service?

Yes. Please inform us of your final destination and we will check with our shipping agency to quote the shipping cost for your reference before delivery.

A: Yes. Please inform us of your final destination. we will check with our shipping agency to quote the shipping cost for your reference before delivery.
