2.0 KW High Speed 304 Stainless Steel Tea Bag Filling Machine for Three Sides Sealed Bags

Place of Origin	CHINA
Brand Name	CHIC
Model Number	DXDC8V

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

Product Details

Capacity	110±5bags/min	Max.Dosage	6 Cm3
Size Of Tea Bag (L×W)	62.5mm×50 Mm	Size Of Envelope (L×W)	100mm×130mm (Length Variable Only) Contains 3 Teabags~5 Teabags Per Envelope (Customer Request)
Width Of Filter Paper	125mm	Tag Dimensions	26mm×24mm( Or 28mm×24mm )
Thread Length	210mm	Envelope Materials	Various Materials ( Plastic / Foil / P.E, Paper / P.E)
Voltage	AC 380V/220V	Total Power	2.0 KW
Air Pressure	0.4~0.6MPa	Air Consumption	65L/min
Overall Dimension	1.400m ×0.905m ×2.475m	Carton Dimensions	1.700m×1.100m ×2.200m
Net Weight	910kg	Gross Weight	1200kg
Options	1) Pneumatic Vacuum Feeder 2) Heat Sealable Tag Device 3) Final Product Conveyor Device(Customize) 4) Modification Cutter Tool
Highlight	2.0 KW Tea Bag Filling Machine , High Speed Tea Bag Filling Machine

Leave a Message

Product Description

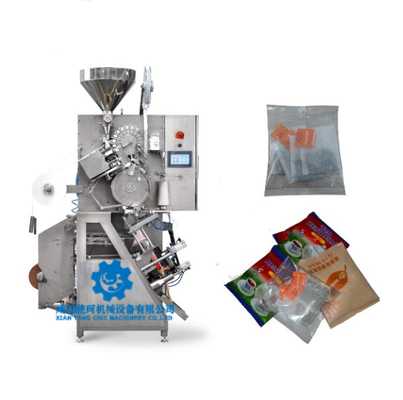

DXDC8V Tea bag packing machine

This automatic teabag packing machine can vary the quantity of teabags to be packed in an independent envelope. Our product can pack non-viscidity granule materials,CTC black tea, green broken tea, herbal mix granular formulations in various industry. It is controlled by PLC, Touch screen display,Operating easily.

The latest type of heated sealing packing machine is the fully automatic tea packaging machine. This machine is known for its multifunctionality, as it can automatically pack tea without any human intervention. One of the main features of this machine is the ability to pack the inner and outer bag in one go, which prevents any direct contact with materials and improves the overall efficiency of the process.

The inner bag is made of filter cotton paper and is automatically packed with thread and label. On the other hand, the outer bag is composed of composite paper. This machine boasts of several advantages, including photoelectric location for the tag and outer bag, as well as the adjustment of the content, length of inner and outer bag and tag based on the need. This flexibility in customization ensures that the perfect shape is achieved, thus upgrading the product’s appearance and adding value to it.

Characteristics

♦ Patent for heat sealable tag system (No glue).

♦ Provide servo control for traction of envelope.

♦High performance of sealing structure, Air tightness well, the bags are prepared in a continuous process from a roll of heat sealable hermetic material. After placing into each bag the programmed amount of teabags, they are sealed and cut for delivery.

♦ A sensing system that follows color mark automatically and ensures printing logo on a properly place.

♦ A sensor monitor for jam teabag. Alarm stop when it detects a shortage of materials.

♦ Stainless steel body of forming device, installing and removing within short time.

♦ Various heat sealable laminated materials (Plastic / P.E, Plastic / Foil / P.E).

Applications:

The machine is designed specifically for the dual bag packaging of small, grain-like materials and powders. Some examples of materials that are perfect for this machine include tea leaves, medicinal tea, and healthy teas.

This machine is ideal for individuals who want to streamline their packaging process and increase their efficiency. By using this dual bag packing machine, you can easily package and distribute your products without the hassle of doing it manually.

Whether you are a small business owner or an individual who enjoys packaging your own teas and other small products, this machine is the perfect solution for you. Its versatility and ease of use make it a must-have tool in any workspace.

With its advanced features and user-friendly interface, this machine is perfect for anyone looking to improve their packaging process. It is reliable, efficient, and will help you get your products to market faster than ever before.

Technical data

Capacity	110±5bags/min
Max.Dosage	6 cm³
Size of tea bag (L×W)	62.5mm×50 mm
Size of envelope (L×W)	100mm×130mm (Length Variable only) Contains 3 teabags~5 teabags per envelope (Customer request)
Width of filter paper	125mm
Tag dimensions	26mm×24mm( or 28mm×24mm )
Thread length	210mm
Envelope materials	Various materials ( Plastic / Foil / P.E, Paper / P.E)
Voltage	AC 380V/220V
Total power	2.0 KW
Air pressure	0.4~0.6MPa
Air consumption	65L/min
Overall dimension	1.400m ×0.905m ×2.475m
Carton dimensions	1.700m×1.100m ×2.200m
Net weight	910kg
Gross weight	1200kg
Options	1) Pneumatic vacuum feeder 2) Heat sealable tag device 3) Final product conveyor device(Customize) 4) Modification cutter tool

Packing materials

Heat sealing filter paper : Single side heat-sealing ,16.5-21g/㎡ ,width:125mm .

Various heat sealable laminated materials : Plastic / Foil / P.E, Paper / P.E, Paper / Foil / P.E, Plastic / P.E.

Cotton thread : The thread should be original cotton thread with 3 strands of No.16 (21/4 in English System) thread wound into cone.

Tag paper : The tag paper should be coatched paper for food industry specially.High temperature ink print.

Filter paper : 7500bags/kg

Heat sealable tag : 6250 tags/kg

Cotton thread : 20000 bags/Spool

Envelope material : 555 bags/kg

Customization:

Our CHIC tea bag packing machine is fully automatic and customizable to meet your specific needs. With a packing film width options of 120mm, 140mm, 160mm, and 180mm, we can ensure that your tea bags are packed with precision and accuracy of ±0.15g. Made from durable 304 stainless steel, our machines are built to last and are suitable for a voltage power of 220V. Our customizable models include TBPM-15, Z-10, PY-169, and PY-188. Trust in our full automatic tea bags packaging machine to meet your packaging needs.

Product Attributes:

Brand Name: CHIC
Place of Origin: CHINA
Packing Film Width: 120mm, 140mm, 160mm, 180mm.
Packing Accuracy: ±0.15g
Material: 304 Stainless Steel
Voltage Power: 220V
Model: TBPM-15, Z-10,PY-169, PY-188

Support and Services:

The Tea Bag Packing Machine product technical support and services include:

Installation and set-up assistance
Training for operators and maintenance personnel
24/7 remote technical assistance
On-site repair and maintenance services
Supply of spare parts and consumables
Regular preventive maintenance service
Upgrades and customization services

Our team of experienced technicians is dedicated to providing prompt and reliable support to ensure optimal performance and efficiency for your Tea Bag Packing Machine.

Packing and Shipping:

Product Packaging:

Dimensions: 1200mm x 900mm x 1800mm
Weight: 350kg
Material: Stainless steel
Packaging Type: Wooden crate

Shipping:

Shipping Method: Sea or air freight
Shipping Time: 2-4 weeks
Shipping Cost: To be determined based on destination

FAQ:

Q: What is the brand name of the tea bag packing machine?

A: The brand name of the tea bag packing machine is CHIC.

Q: Where is the tea bag packing machine manufactured?

A: The tea bag packing machine is manufactured in China.

Q: What type of tea bags can this machine pack?

A: This machine can pack all types of tea bags, including round, square, and pyramid-shaped tea bags.

Q: What is the capacity of this tea bag packing machine?

A: The capacity of this tea bag packing machine is 40-60 bags per minute.

Q: What is the warranty on this tea bag packing machine?

A: Warranty-related content is excluded from this task, so we cannot provide an answer to this question.
