Full Automatic Multi-Lane Packing Machine Yeast Powder Coffee Powder Rice Noodles Packing Machine

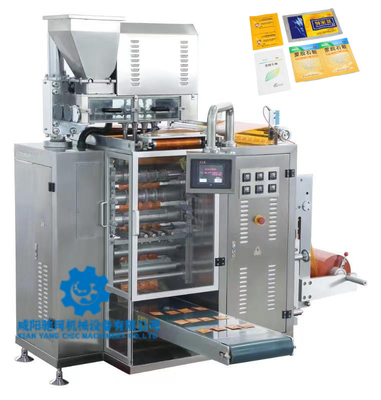

DXDO-F1200 Multi-lane powder sachet packaging machine

Multi-row powder Sachet Packaging Machine is suitable for packing loose, non sticky powder material in the medicine, food, daily chemical and other industry, automatically packing materials into sachets with measuring requirement. Such as flour, coffee powder, starch, milk powder, all kinds of drugs, chemical powder and so on.Four side Sealing & Multi-line Filling Machine suitable for packing loose, non sticky powder material, automatically packing materials into sachets with measuring requirement.

Characteristics

1. Advanced performance, high strength, low noise, compact structure, smooth operation and long service life.

2. Using five-axis servo synchronous drive, human-machine interface touch adjustment, and PLC control, each actuator can be positioned accurately and automatically synchronously.

3. The degree of automation is high. This machine can complete the tasks from longitudinal sealing, longitudinal cutting, transverse sealing, filling, coding, easy-tearing, dotted line cutting, transverse cutting, to finished bag output in one go.

4. Use a high-precision integral rolling heat sealing roller as the sealing mold. Sealed on four sides, multi-row bag form. The packaging speed is fast, the bag shape is flat, exquisite and beautiful, and the packaging efficiency is high.

5. The adjustment is quick and convenient, and the bag length can be adjusted steplessly without changing the mold. And the actuators such as vertical sealing, horizontal sealing, filling material, batch number printing, dotted line cutting, and cross cutting can all be adjusted through the human-machine interface.

6. Accurate filling and metering. For powdery materials, material level detection and rotary feeding mechanisms are used to ensure that the material level is always consistent and uniform. Each row is equipped with a cylindrical blade screw servo motor to drive feeding. The metering can be set independently on the human-machine interface and can be fine-tuned. The metering accuracy is high, and each row of bags can be easily and accurately metered.

7. The photoelectric tracking system is adopted to ensure automatic alignment of the double-sided patterns of the packaging bag and has an automatic counting function.

8. It has strong adaptability to packaging materials. The sealing temperature of this machine has automatic control function and high control accuracy. It can be adapted to a variety of packaging films produced at home and abroad, such as PET/AL/PE, PET/PE, NY/AL/PE, NY/PE, etc.

9. Additional functions can be added appropriately. For example, bag cutting can be equipped with virtual knives, flat knives, or even special-shaped knives. According to the needs of material filling performance, a lifting mechanism for the unloading nozzle can be added, as well as various alarm requirements.

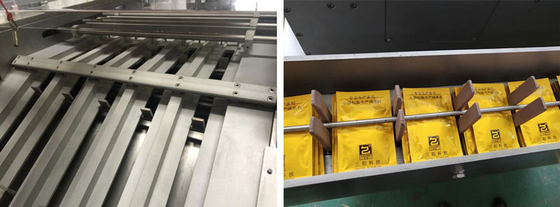

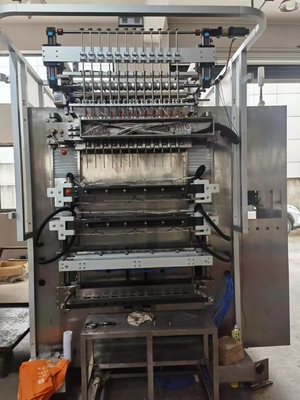

Machine Details:

Main Technical Parameters

Sample:

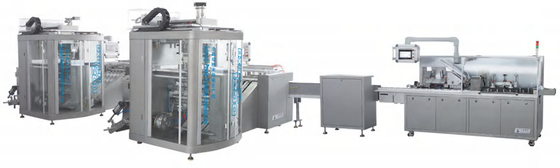

Option:Full Automatic Powder Packing Production Line

The packaging production line mainly consists of two DXDO-FL1200E powder automatic packaging machines, small bag sorting and conveying, online weighing, detection and removal, counting and stacking bag conveying, and boxing machines. In order to control accuracy and facilitate adjustment, servo motors are used to control the main parts.

Suitable for fully automatic linked packaging of four sided sealed bags. Online, automatic vacuum feeding, bag making, filling, vertical sealing, horizontal sealing, batch number printing, cutting and tearing, flat cutting, bag sorting and conveying, single bag weighing, missing or insufficient packaging removal, automatic counting and stacking of finished bags for transfer, instruction manual folding, paper box forming, finished bag insertion, batch number printing, paper box packaging, waste removal, finished product output, product counting and other processes can be automatically completed, in compliance with GMP production requirements, effectively saving labor costs and production costs. The design scheme can be changed according to actual customer requirements.

Main Technical Parameters

DXD-F1200E

YZ120 Cartoning Machine

Sample:

Our Certification:

Our Partner:

User Good Reviews

Packing and Shipping:

Packing inside is plastic films and outside is fumigation wooden case.Our wooden case is very strong,it can bear long time shipping on the sea.And machine with preservative film,it can stop the salt sea water enter into the machine and make the machine corrosion.

FAQ:

Q1: How to find a Packing machine suitable for my product?
Tell us about your product details and packing requirements.
1. What kind of product you would like to pack?
2. The bag/sachet/pouch size of you need for the product packing(the length and width).
3. The weigh of each pack you need.
4. You requirement for the machines and the bag style.

Q2: Is engineer available to serve oversea?
Yes, but the travel fee is responsible by you.
In order to save your cost, we will send you a video of full details machine installation and assist you till the end.

Q3. How can we make sure about the machine quality after placing the order?
Before delivery, we will send you the pictures and videos for you to check the machine quality.
And also you can arrange for quality checking by yourself or by your contacts in China.

Q4. We are afraid you won't send us the machine after we send you the money?
We have our business license and certificate. And it is available for us to use Trade assurance service, guarantee your money and guarantee your machine's on-time delivery and machine quality.

Q5. Can you explain me the whole transaction process ?
1.Sign the Contact
2.Arrange 30% deposit to our factory
3.Factory arrange production
4.Testing & detecting the machine before shipping
5.Inspected by customer or third agency through online or site test.
6.Arrange the balance payment before shipment.

Q6: Will you provides the delivery service?
A: Yes. Please inform us of your final destination, we will check with our shipping agent to quote the shipping cost for your reference before delivery.
