Pharmaceutical Liquid Water Daily Chemical Body Hair Care Products Automatic Bottles Filling Sealing Bottle Machines

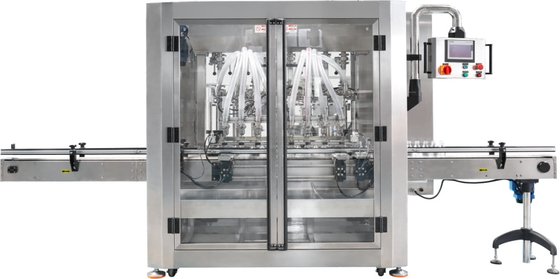

CHZX-6/8/10/12 Linear bottles filling line liquid water pharmaceutical automatic filling bottle machines

The fully automatic piston filling machine adopts the principle of plunger quantitative filling. Bottle feeding, positioning, filling and bottle discharging are all automatically controlled by PLC, which meets GMP standards. It is suitable for liquid filling of medicine, food, daily chemicals, pesticides and fine chemicals.

Features

1.Touch screen operation interface

2. 4-pin up and down movement filling, effectively preventing foam generation

3. Filling accuracy can reach ±1%

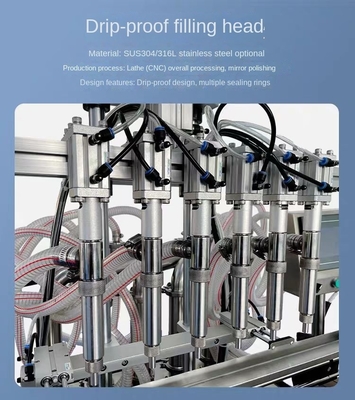

4.The filling cylinder is hard chrome treated and ground, and the unique filling valve design does not drip

5.With no bottle, no canning function

6.Different positioning devices are designed according to the actual situation of the bottle

7. The equipment is easy to clean, can be folded and assembled without tools, and can also be cleaned online or sterilized at high temperature

8. PLC can be programmable and uses Japan Mitsubishi

9.Pneumatic components use Taiwan AirTac

10. The equipment shell material is SUS 304# stainless steel

11.Equipped with a glass protective cover that meets hygiene and safety standards

Note: The filling range and speed can be designed with different filling heads according to user needs.

Technical Parameters

Machine details:

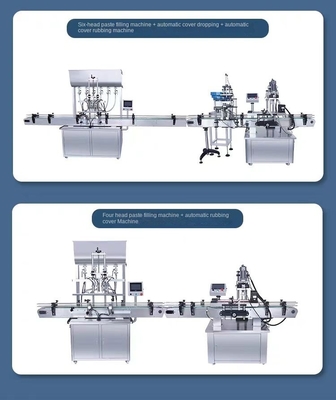

Machine line samples:

Applications:

Usually work with machines:

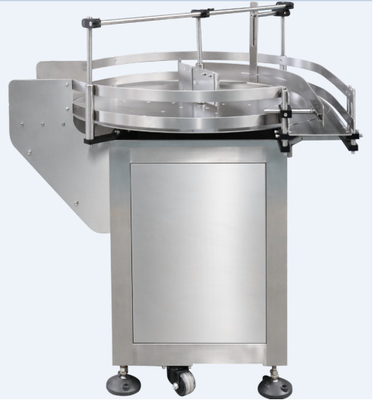

1.  Bottles sorting and feeding machine

Suitable for automatic transmission of round bottles, such as the conveyor belt connected to labeling machine, filling machine, capping machine, automatic bottle delivery, improve efficiency; It can be applied to the middle connection of the assembly line as a buffer platform to shorten the length of the conveyor belt.

◆ The range of applicable bottles can be adjusted freely, the conveying speed of bottles can be 30~50 bottles/min, the speed can be stepless adjustment, convenient production arrangement.

Features

◆ Product delivery and collection, sorting, reduce labor intensity, improve efficiency.

◆ The structure is relatively simple, stable and reliable.

Working Process

◆ The turntable of the bottle unscrambling machine drives the product to rotate automatically, the product is close to the edge of the turntable under the fluctuation of the bottle unscrambling plate, and the product is exported orderly along the bottle unscrambling groove of the bottle unscrambling machine.

Technical Parameters

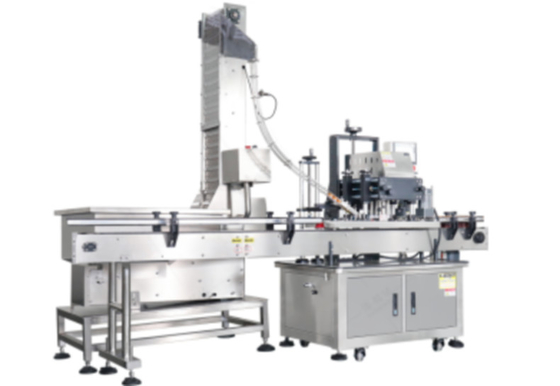

-Automatic capping machine:

Description

Automatic in-line capping machine is based on the international advanced models improved design, capping speed, high qualified rate, easy to operate. It can be used to screw caps of different bottle shapes in food, pharmaceutical, daily chemical, pesticide, cosmetics and other industries. The machine has high degree of automation, good stability and convenient adjustment. (If it is equipped with a capping machine, it can be automatically capped.) It can be selected according to actual needs.

Technical Parameters

Our Advantages:
