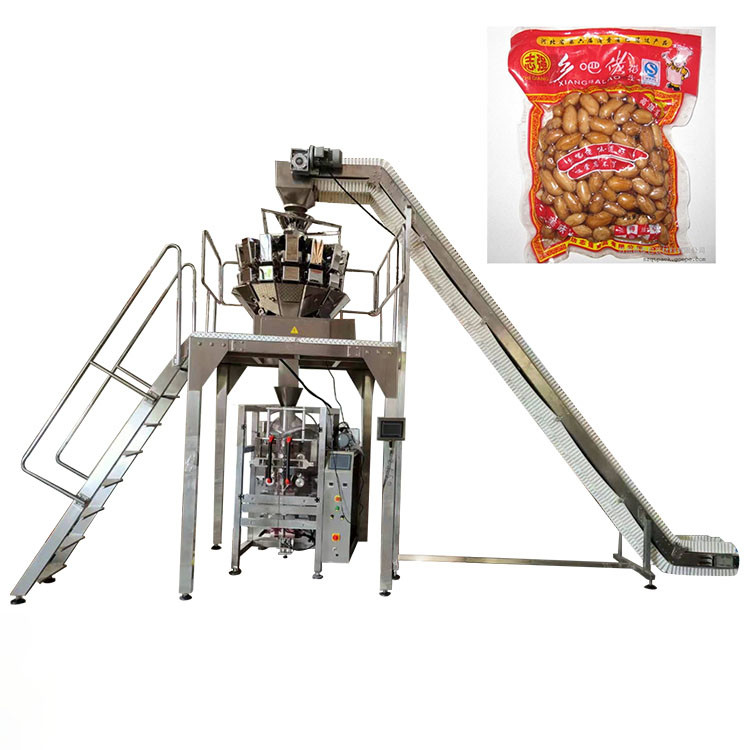

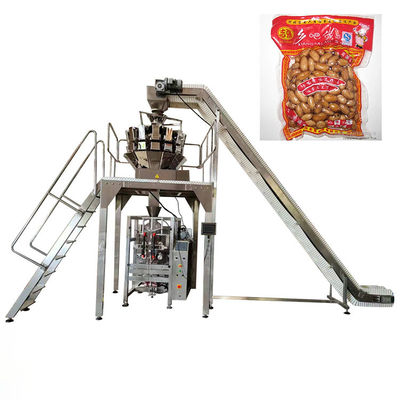

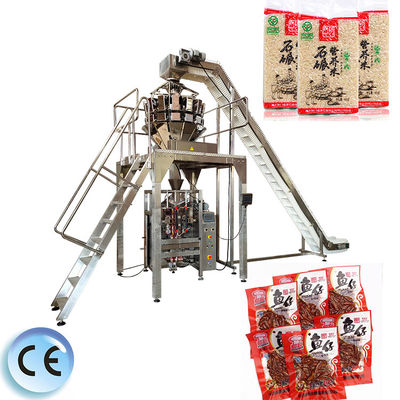

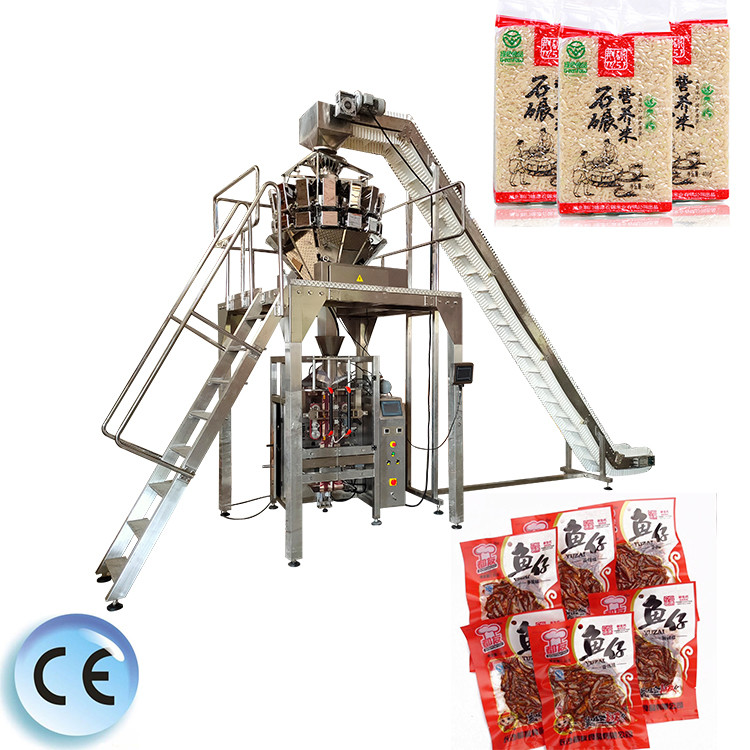

Vertical Full Automatic 420V Vacuum Seal Packing Machine 304SS Airtight

  • Vertical Full Automatic 420V Vacuum Seal Packing Machine 304SS Airtight
  • Vertical Full Automatic 420V Vacuum Seal Packing Machine 304SS Airtight
  • Vertical Full Automatic 420V Vacuum Seal Packing Machine 304SS Airtight
Place of Origin China
Brand Name CHIC
Certification CE ISO
Model Number 420L
Minimum Order Quantity 1 piece
Packaging Details Packing inside is plastic films and outside is fumigation wooden case.Our wooden case is very strong,it can bear long time shipping on the sea.And machine with preservative film,it can stop the salt sea water enter into the machine and make the machine cor
Delivery Time 15 working days
Payment Terms L/C, T/T, Western Union
Supply Ability 50 piece per month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Name 420V High Speed Vertical Type Full-Automatic Food Vacuum Seal Packing Machine 304SS Packing Material Stand-up Pouch, Bags, Film, Pouch, Pillow Bag
Power 220V 50/60HZ 2KW Machine Size 1800x1800x2500mm
Packing Film Width 80-1050 Mm Bag Size W:80-250 Mm L:80-380 Mm
Packing Speed 5-60 Bags/min Machine Weight 1680kg
Highlight

420V Vacuum Seal Packing Machine

,

304SS Vacuum Seal Packing Machine

,

304SS airtight sealing machine
Leave a Message
Product Description

420V High Speed Vertical Type Full-Automatic Food Vacuum Seal Packing Machine 304SS

Applications:

Puffed food,candy,biscuit,peanut,cookies,pistachio,crystal candy,brown sugar,daily commodities,cooked food,pickles.



Main Features:


A.The touch screen for easy operation without stopping the unit.
B.Packaging diversification, such as back-seal bag, side gusseted bag, linked bag, hole punched bag etc.
C.Full automation from bag making, measuring, filling, sealing, counting and date printing.This machine mainly packs granules.
D.Multi-heads scale filling system for filling accuracy and good application to various kinds of products.
E.With vacuuming function, food storage is more convenient and safe.(We have several models. We can customize the suitable one for you according to your requiredment.Just Tell us , Weight or Bag.)



Machine specification:


Specification (With the product size selection models)
Model D-420V D-520V
Film width Max.420mm Max.520mm
Bag length 50-300mm 80-380mm
Bag width 60-200mm 80-250mm
Packaging rate 5-70 bag/min 5-60 bag/min
Film thickness 0.04-0.08mm 0.04-0.08mm
Power supply 220V 50/60Hz 220V 50/60Hz
Power 2kw 2.5kw
Machine size(LxWxH) 1217x1015x1343mm 1488x1080x1490mm
Machine quality About 650kg About 680kg

Machine details:
Vertical Full Automatic 420V Vacuum Seal Packing Machine 304SS Airtight 0
Samples:

Vertical Full Automatic 420V Vacuum Seal Packing Machine 304SS Airtight 1



Pre-Sale Service:
We will according your product feature, weight of each bag, and shape of bag make a quotation for your. Then more details we need communication sunch as material and thickness of film, dimension of bag you already have it or need we design for you, Operate language,what kind of voltage at the local.

After-Sale Service:
Warranty: 1 Year excep wearing parts ( Cutter, Belt, Horizontal and vertical Heating Tube etc)Most of components are free-replacement (PLC,Servo controller,Servo motor,Touch screen,cylinder) . Machine delivery will with a tool box, there have some parts is free.

Operation training:
1:Machine is very easy operate, delivery with manual, offer lot of photo and video when machine in assembling or disassembling.
2: Welcome to our factory learning.
3: Engineers available to service machinery overseas.
Kindly reminder:
Please let us know the follow packing details when you offer,so that we can check if this model is suitable for your case.Thank you in advance.
1. Product details
2. Bag width,bag length
3. Bag shape
4. Packing film material
5. Machine frame


FAQ



 What information from client is neccessory for correct quotation?

1. What is your product?
2. The size of your bag?

How to connect with gas source?
Buyer prepare gas bottle, then connect our machine directly with hose will be ok. We leave a hole on the machine for gas connect.

What kind of air compressor shall we use?
Small air compressor with 30L gas tank, and supply 0.6-0.8Mpa air pressure will be ok.

Shipment term?
1. We ship under FOB or CIF by sea usually.
2. This machine is small, it can also be send by express, or by air.

Payment?
40% prepayment before production, balance before shipment.

Lead time?
7-15days after prepayment.

Do you test machine before shipment?
We will test and send video for confirmation before shipment.
