20000-22000BPH Fruit Soda Sparkling Carbonated Beverage CSD Automatic Bottle Liquid Filling Machine

  • 20000-22000BPH Fruit Soda Sparkling Carbonated Beverage CSD Automatic Bottle Liquid Filling Machine
  • 20000-22000BPH Fruit Soda Sparkling Carbonated Beverage CSD Automatic Bottle Liquid Filling Machine
  • 20000-22000BPH Fruit Soda Sparkling Carbonated Beverage CSD Automatic Bottle Liquid Filling Machine
  • 20000-22000BPH Fruit Soda Sparkling Carbonated Beverage CSD Automatic Bottle Liquid Filling Machine
Place of Origin China
Brand Name CHIC-BF-1
Certification CE, ISO
Model Number DGCF32/32/10
Minimum Order Quantity 1
Packaging Details wooden box
Delivery Time 25-30 working days

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Production Capacity(500ml)(b/h) 12000BPH Rinshing Head 32
Filling Head 32 Capping Head 10
Total Power 7.6kw
Highlight

Automatic Bottle Liquid Filling Machine

,

22000BPH Liquid Filling Machine

,

Fruit Soda Liquid Filling Machine
Leave a Message
Product Description

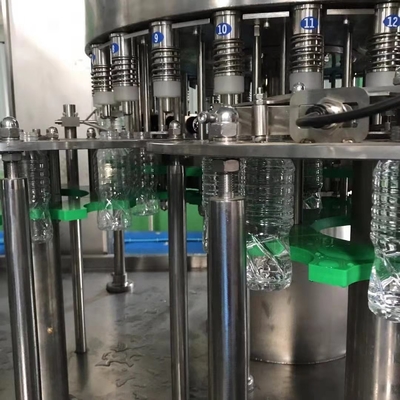

DGCF 32/32/10 Washing, filling, capping 3-in-1 machine
20000-22000BPH Fruit Soda Sparkling Carbonated Beverage CSD Automatic Bottle Liquid Filling Machine 0
20000-22000BPH Fruit Soda Sparkling Carbonated Beverage CSD Automatic Bottle Liquid Filling Machine 1
Fruit juice production line is used to process various fruit juices. In general, a complete fruit juice production line consisted of many juice processing machines, such as water treatment equipment, bottle rinser, filling machine, sealing machine,sterilization equipment, CIP cleaning machine, filtration equipment, packaging equipment, etc.
Our fruit juice processing line is used for manufacturing of fruit juice drink, it processes 2000-36000 bottles per hour, the output can be customized according to the demands of customers. The complete fruit juice processing line possesses fruit pretreatment system, water treatment system, sugar blending system, degassing homogenization sterilization system, CIP cleaning system, bottle blowing machine system, bottle shaker system, air delivery, filling machine, secondary sterilization system, sleeve labelingmachine , drying machine, jet printer, film charter, transportation, boilers and so on. The degree of automation can be configured according to customer requirements. We provide the technology process, the layout design of workshop and the entire technical guidance.
* The raw material can be fresh fruit or concentrated fruit juice.
* According to customer requirements, choosing packaging form, such as plastic bottles, glass bottles, cans and so on.
* 2000-36000 bottles per hour, the output is depend on the requirements of customer.
* The process technology and the degree of automation also are customized by customer needs.
Model DGCF16/12/6 DGCF18/18/6 DGCF24/24/8 DGCF32/32/10 DGCF40/40/12
Production Capacity(500ml)(b/h) 2000-4000 4000-6000 6000-8000 8000-12000 8000-12000
Filling Precision <±5mm (Liquid level)
Filling Pressure(MPa) <0.4
Polyester Bottle Standard(mm) Bottle Diameter: φ 40-φ80
Bottle Height: 130-250		 Bottle Diameter: φ50-φ100
Bottle Height: 150-320
Suitable Cap Shape Plastic Screw Cap
Water Pressure of Washing Bottle(MPa) 0.18-0.25
Water Consumption for Water Bottle(kg/h) 1300 2000 2500 3000 3000
Spraying Postion 5 5 6 12 12
Dripping Bottle Position 2.5 3 3.5 7 7
Gas Source Pressure(MPa) 0.4
Gas Consumption(m3/min) 0.3 0.4 0.4 0.5 0.5
Total Power(kw) 5.03 5.03 6.57 8.07 8.07
Total Weight(kg) 2000 3000 4000 5000 5000
Dimenson(L*W*H)(mm) 2100*1500*2200 2450*1800*2200 2750*2180*2200 3600*2200*2600 3600*2200*2600





20000-22000BPH Fruit Soda Sparkling Carbonated Beverage CSD Automatic Bottle Liquid Filling Machine 2

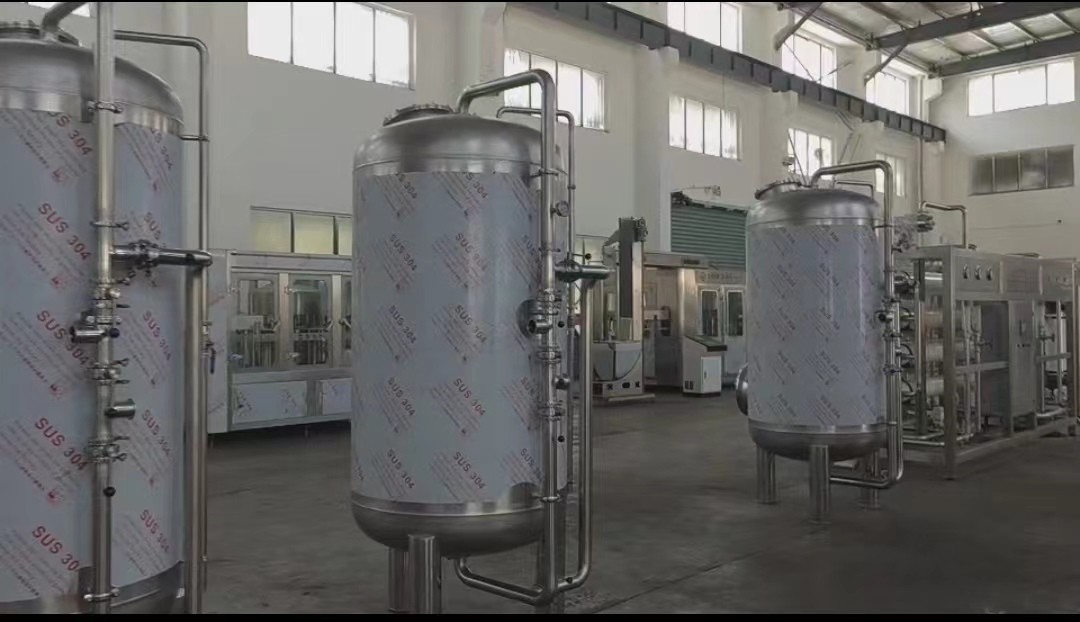

Water treatment system

The water treatment equipment includes multiple-filter-medium (JDL-6), sand-bar filter (GL series), fine filter (JML series), fiber active carbon (HML series), sodium-ion exchange (SNJ-3), hollow fiber super-filter (CL series), ultraviolet sterilizer (ZM series), ozonator and etc. Its treatment capacity is 2-30 tons per hour. It can effectively get rid of muddy organic matter, iron, manganese and oxide. Filter suspended substance, colloid, remained oxygen of microorganism and some of heavy metal ion in the water. Reduce the hardness of the water to make all specifications of the water quality fully meet the state fresh water standards of fresh drink water, even that of mineral water.

20000-22000BPH Fruit Soda Sparkling Carbonated Beverage CSD Automatic Bottle Liquid Filling Machine 3

Bottle Blowing Machine

CM-8Y heat-resistant semi-automatic bottle blow molding machine is suitable for producing any shapes of PET containers and volume is from 10-2000ml. 1t is widely used to produce mineral water bottles, carbonated beverage bottles, cosmetic bottles, oil bottles etc. Adopting double crank connecting bar clamping and clamping mold is stable and fast. Adopt for infra-red rotary oven and heated equally. The air system has been divided into two parts: pneumatic action part and bottle blow part to meet the different requirements for the pressure of action and blow. It can provide sufficient and steady high pressure for blowing large irregular shaped bottles. The machine is also equipped with muffler and different parts of refueling system. The machine can be operated in the step-by-step mode and the semi-auto mode. The machine is small with low investment, it's easy and safe to be operated by one person.
20000-22000BPH Fruit Soda Sparkling Carbonated Beverage CSD Automatic Bottle Liquid Filling Machine 420000-22000BPH Fruit Soda Sparkling Carbonated Beverage CSD Automatic Bottle Liquid Filling Machine 5

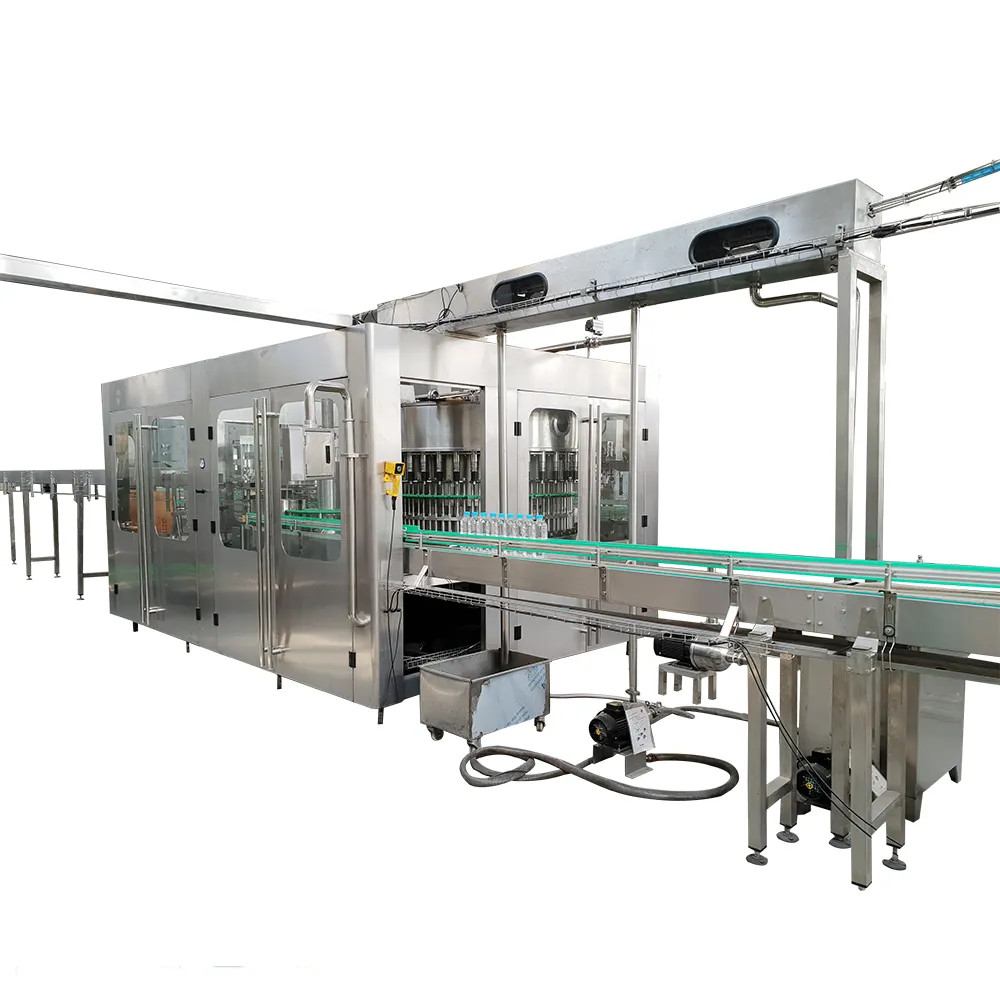

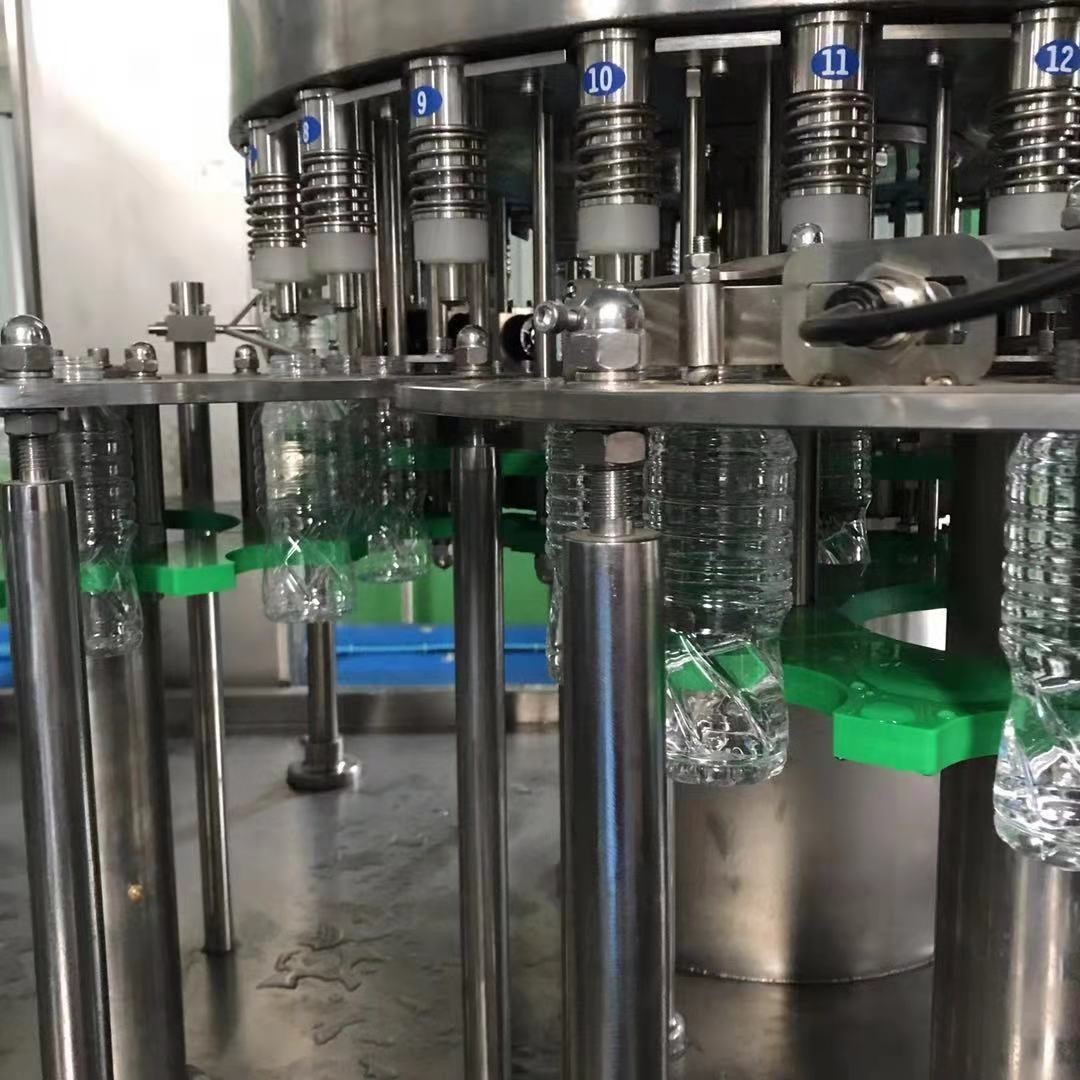

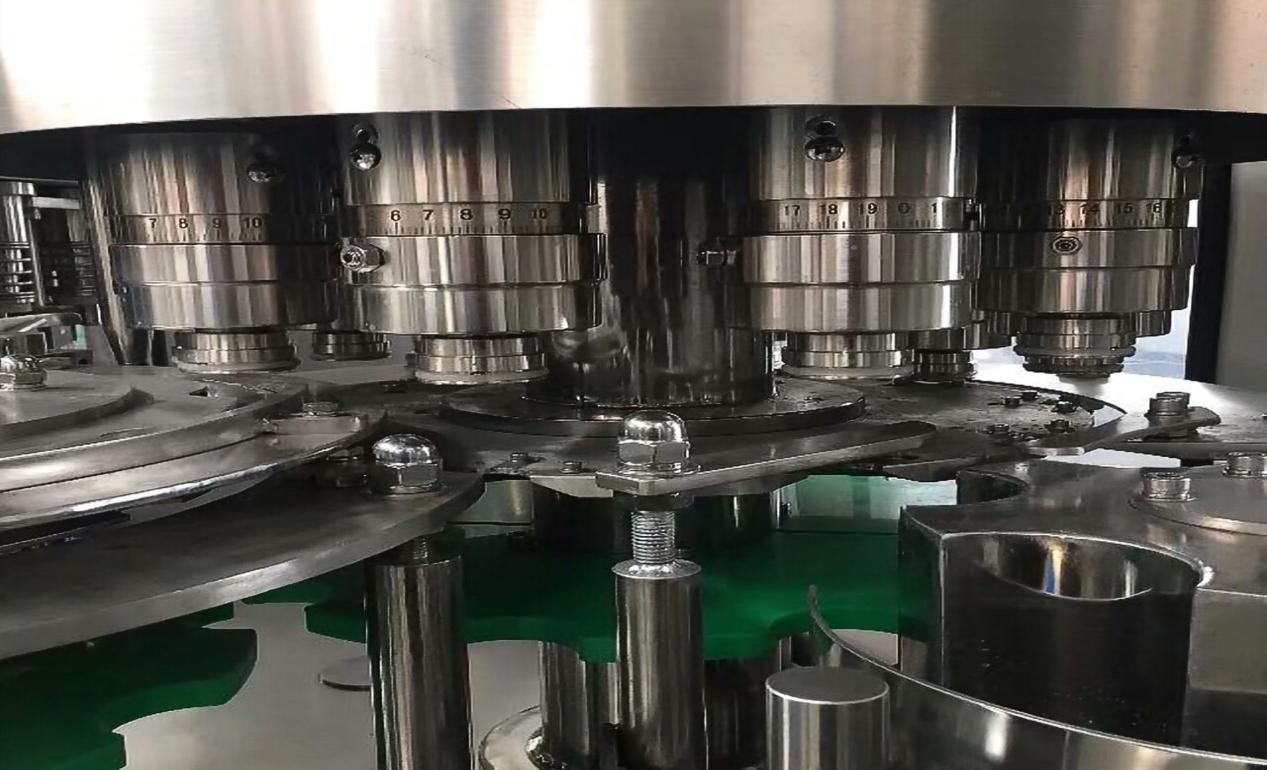

The three-in-one filling machine combines the functions of flushing, filling and sealing on one machine. It is a new type of equipment developed by ourselves with advanced technology from abroad. It combines many years of practical experience in the production of the three-in-one machine for flushing, filling and sealing, and repeatedly absorbs the opinions of users. It meets the requirements of customers for different bottle filling on one machine, and uses the hanging type bottleneck manipulator to make the bottle type replacement convenient and fast. It is mainly used for disinfection, washing, filling and sealing. It is used for filling pure water, mineral water and normal temperature fruit juice. It can be selected by users with different needs.
20000-22000BPH Fruit Soda Sparkling Carbonated Beverage CSD Automatic Bottle Liquid Filling Machine 6
Labeling Machine

This machine applies to single side, double and facade labeling of all kinds of quadrate & flat bottles in pharmacy, food beverage, daily chemical industry etc., The machine adopts PLC process control, photo-electricity bottle checking and label delivery, it composes of high production efficiency with labeling precise and reliable, operation convenience, and wide adaptive scope etc. Start-up system: depend on 3-5 pole motor driving, electronic control speed, full automatic transmission device, electricity source place combine with high precise density steel star gear, including automatic suited machinery safety device.
20000-22000BPH Fruit Soda Sparkling Carbonated Beverage CSD Automatic Bottle Liquid Filling Machine 7

application area

It is applied to the production of medicine, personal care products, tobacco, food and beverage packaging, wine, dairy products, clothing labels, leather, electronic components, chemical building materials, metal products, product labels and other fields, as well as the effective date, batch number, shift number, enterprise name, trademark and logo.

Applicable materials:

Applicable to marking of various materials, such as paper packaging, leather cloth, plexiglass, plastic packaging, resin plastic materials, bamboo and wood products, coated metal, metal, glass, ceramics, etc.

20000-22000BPH Fruit Soda Sparkling Carbonated Beverage CSD Automatic Bottle Liquid Filling Machine 8



Hot shrinkable packaging machine


Specially designed and manufactured for the high-speed packing requirements of drinks (pure water, beverage, fruit juice, and milk product). During the product forward conveying process, it can automatically group the product into package, so as to save time and enhance packing efficiency.
Touch-screen operating panel with user-friendly interface and convenient parameter setup, absolutely an easy-to-operate machine.The ideal model of middle-speed heat-shrinking packager in the domestic market.



Support and Services:



EIGHT-POSITION AUTOMATIC PRE-MADE POUCH PACKAGING MACHINE Technical Support and Service

We provide technical support and service for Multi Packing Machine to ensure that users have the best experience with the product . Our team of experienced engineers is available to answer any questions you may have about the product , offer advice on optimizing its performance and help troubleshoot any issues that arise.

We also offer regular maintenance services to keep your EIGHT-POSITION AUTOMATIC PRE-MADE POUCH PACKAGING MACHINE running smoothly . Our technicians can inspect the machine , identify any potential problems and provide the necessary repairs or adjustments to ensure optimal performance .

If you have any questions or require assistance with your Electric packing machine , please contact our technical support team for assistance.

Packing and Shipping:



Packaging and Shipping for EIGHT-POSITION AUTOMATIC PRE-MADE POUCH PACKAGING MACHINE

The EIGHT-POSITION AUTOMATIC PRE-MADE POUCH PACKAGING MACHINE is shipped in sturdy cardboard boxes for secure transport . The box is safe from weather , dust , and other external factors that could damage the product . The product is also wrapped in protective plastic , foam , or other materials to cushion the product from shocks and vibrations during transit.The box also contains instructions for use and other necessary paperwork.

The package is marked with a unique serial number to identify the product and any other information necessary for shipping.We use trusted, reliable courier services for delivery,and shipping costs are added to the cost of the product.Customers will receive an email with tracking information once their order has shipped.

FAQ:



Q1: How to find a Packing machine suitable for your product?

Tell us about your product details and packing requirements.

1. What kind of product you would like to pack?

2. The bag/sachet/pouch/bottle size of you need for the product packing(the length and width).

3. The weight/ml of each pack you need.

4. You requirement for the machines and the caps style.

5.the machine line capacity do you want per hour,

Q2: Is engineer available to serve oversea?

Yes, but the travel fee is responsible by you.

In order to save your cost, we will send you a video of full details machine installation and assist you till the end.

Q3. How can we make sure about the machine quality after placing the order?

Before delivery, we will send you the pictures and videos for you to check the machine quality.

And also you can arrange for quality checking by yourself or by your contacts in China.

Q4. We are afraid you won't send us the machine after we send you the money?

We have our business license and certificate . And it is available for us to use Trade assurance service , guarantee your money and guarantee your machine's on-time delivery and machine quality.

Q5. Can you explain me the whole transaction process ?

1. Sign the Contact

2. Arrange 30% deposit to our factory

3. Factory arrange production

4. Testing & detecting the machine before shipping

5. Inspected by customer or third agency through online or site test.

6. Arrange the balance payment before shipment.

Q6: Will you provides the delivery service?

A: Yes . Please inform us of your final destination , we will check with our shipping agent to quote the shipping cost for your reference before delivery.
