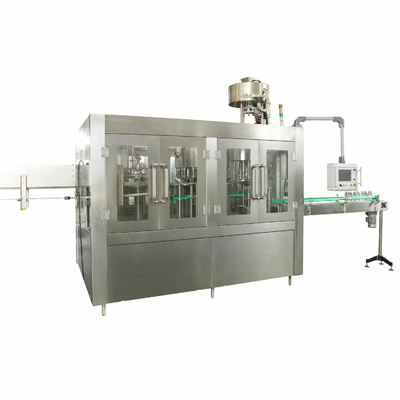

4500 Bottles Per Hour Stainless Steel Fill and Seal Roller Sealing Machine With CE ISO9001

Product Description:

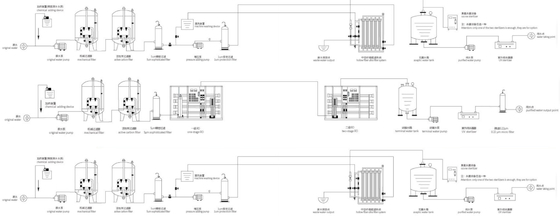

The PET bottled water production line includes a Water Treatment Device with an Ozone-containing Sterilization Device, which is used to treat the raw water. The Bottle then goes through an Air passage machine and is followed by a Flushing, filling and capping machine to complete the process. The cap on the bottle is then added by an Automatic capping machine.

Additionally, after the bottle is capped, it moves on to the Bottle Dryer and then the Printing Machine. Once this is complete, the bottle moves on to the Lamp Inspection process and then goes into the Buffer System of Solid Bottle Conveying. From there it goes through the Bottle Drier Membrane Charging Machine and ends with Manual Coding and Storage.

It is important to note that the above process is a general flow of the production line and can be adjusted according to customer's specific needs.

Features:

Applications:

Production Capacity: The equipment has a production capacity ranging from 4000 to 6000 bottles per hour.

Filling Capacity: The filling capacity ranges from 350 to 1000ml.

Positioning Mode: The equipment uses liquid level positioning to ensure accurate bottle positioning.

Bottle Size: The equipment is suitable for use with PVC and PET plastic bottles with a diameter between 50 and 100mm, a height ranging from 150mm to 320mm.

Driving Mode: The equipment is driven by a 3 KW motor with triangular belt drive WPO135 worm reducer (I = 30:1).

Main Structure and Characteristics of Equipment:

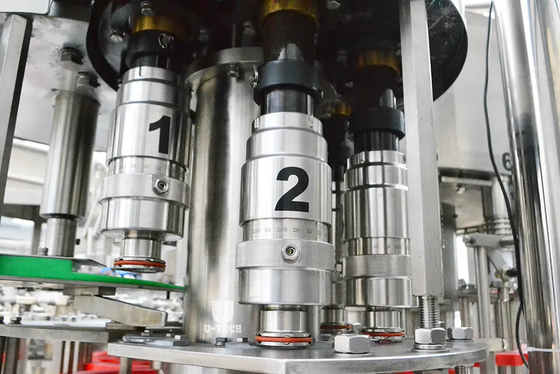

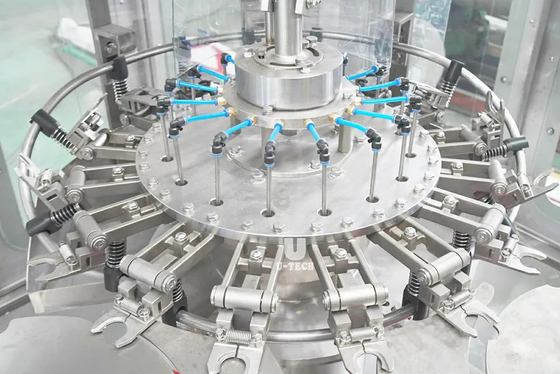

The equipment has 18 sets of bottle flushing manipulators equipped with rotating seal, internal and external flushing, and backwater mechanism. There are 18 filling valves and a set of tighteners for tidying bottle caps. The equipment also features four sets of bottle dialing safety devices with buzzer alarm. No bottle, no filling, no capping. The main engine of the equipment adopts advanced frequency conversion speed control technology. The air flow to the bottle caps meets hygienic requirements, thanks to the efficient and clean air filters which are imported.

Customization:

The operator interface is a touch screen for ease of use and the safety features include an emergency stop and safety door. This canning machine line can handle packaging materials such as plastic, glass, and metal. Upgrade your production line with CHIC today!

Support and Services:

The Bottles / Cans Fill and Seal Packing Machine (NEW) comes with a comprehensive technical support and services package to ensure that our customers receive the best possible assistance and maintenance for their machine.

Our technical support team is available to answer any questions or concerns you may have about your machine's setup, operation, or maintenance. They can also provide troubleshooting assistance and advice on how to optimize your machine's performance.

We also offer a variety of services to help keep your machine running smoothly, including preventative maintenance, repairs, and spare parts replacement. Our skilled technicians can perform routine maintenance tasks to prevent breakdowns and keep your machine running efficiently, and can also quickly diagnose and repair any issues that may arise.

Additionally, we offer training services to help your staff become proficient in operating and maintaining the machine, ensuring that you get the most out of your investment.

Packing and Shipping:

Product Packaging:

The Bottles/Cans Fill and Seal Packing Machine (NEW) is carefully packaged to ensure that it arrives at your doorstep in perfect condition. It is packed in a sturdy wooden crate to protect it from any damages that may occur during shipping.

Shipping:

We offer worldwide shipping for the Bottles/Cans Fill and Seal Packing Machine (NEW). The shipping cost will depend on your location and the shipping method chosen. Once your order is processed, we will provide you with a tracking number so that you can track your shipment online.

FAQ:

Q1: What is the brand name of this fill and seal packing machine?

A1: The brand name of our fill and seal packing machine is CHIC.

Q2: Where is this fill and seal packing machine made?

A2: This fill and seal packing machine is made in China.

Q3: What certifications does this fill and seal packing machine have?

A3: This fill and seal packing machine has ISO and CE certifications.

Q4: What is the minimum order quantity for this fill and seal packing machine?

A4: The minimum order quantity for this fill and seal packing machine is 1 piece.

Q5: What is the delivery time for this fill and seal packing machine?

A5: The delivery time for this fill and seal packing machine is 50-60 days.

Additionally, this machine can package milk, juice, wine, water, food and detergent sauce. Our packaging details are laminated paper cartons, and we have a supply ability to meet your needs.
