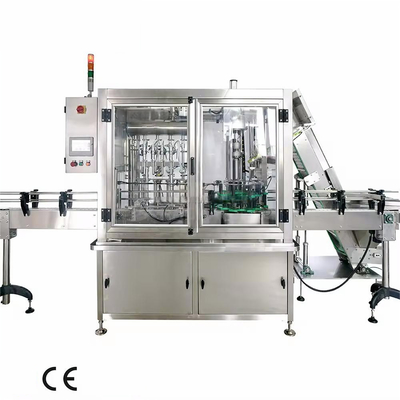

Stainless Steel Fill Seal Packing Machine Line with Roller Sealing Touch Screen Display CE Certified

Product Description:

PET Bottled Water Production Line

The production of PET bottled water involves several steps, each of which plays a crucial role in ensuring the cleanliness and safety of the finished product. The general process flow of the production line includes:

Step 1: Water Treatment Device

The production process begins with treating the raw water to remove any impurities or contaminants that may be present. This is achieved using a water treatment device that contains an ozone-containing sterilization device.

Step 2: Bottle Preparation

The bottles used for the water are prepared by passing through an air passage machine. This process ensures that the bottles are clean and free of any dust or debris. The next step involves flushing, filling, and capping the bottles using a specialized machine.

Step 3: Capping the Bottle

Once the bottles are filled, they are moved to the automatic capping machine, where the caps are securely placed on the bottles.

Step 4: Bottle Finishing

After the bottles are capped, they go through a series of finishing operations, including:

• Bottle Dryer: This step ensures that the bottles are completely dry before being packaged.
• Printing Machine: Labels or other identifying marks are applied to the bottles at this stage.
• Lamp Inspection: The bottles are inspected under a lamp to detect any potential defects.
• Buffer System of Solid Bottle Conveying: This step ensures that the bottles are safely conveyed to the next machine in the production line.
• Bottle Drier Membrane Charging Machine: The bottles are given a final charge of dry air to ensure that they are completely dry.
• Manual Coding and Storage: The bottles are manually coded and stored until they are ready to be shipped to retailers or customers.

Note that customers can adjust the flow of the production line to accommodate their specific needs and production requirements.

Features:

The air duct is supported by a scaffold on the ground. The fan is installed on the upper part of the air duct.

To prevent dust from being blown into the bottle, each fan's air inlet is equipped with an air filter.

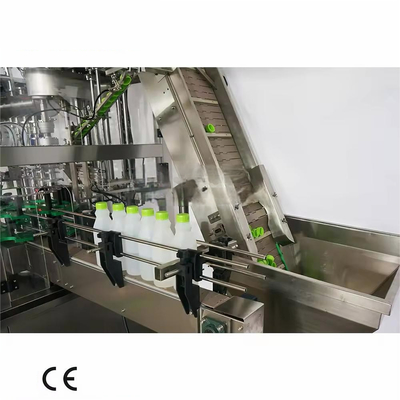

The bottle is blocked by a hanging bottle plate in the air conveyor. The bottle is then transferred by wind to the bottle puncher.

High quality stainless steel is used to make everything except for plastic and nylon parts such as supporting feet and hanging bottle boards.

Applications:

In terms of production capacity, this equipment can produce 4000 to 6000 bottles per hour. As for filling capacity, it can fill bottles with 350 to 1000ml of contents. To ensure accurate positioning of the liquid level, the equipment uses a liquid level positioning mode. This helps to ensure that the amount of contents in each bottle is consistent.

When it comes to the bottles themselves, this equipment is able to handle PVC and PET plastic bottles with diameters of 50 to 100mm and heights between 150 to 320mm. The bottles are cleaned by 18 sets of bottles and manipulators, which are equipped with rotating seals, internal and external flushers, and backwater mechanisms to ensure thorough cleaning.

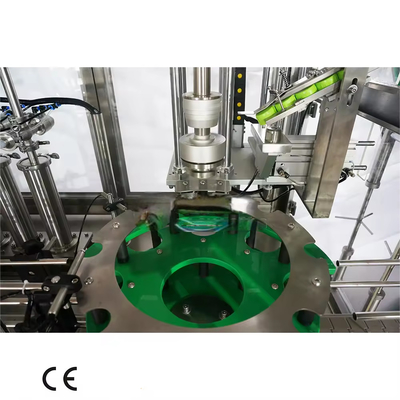

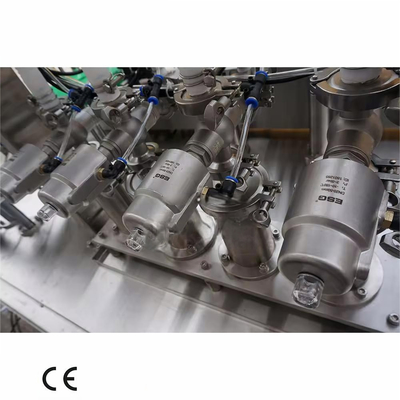

The filling process is carried out using 18 filling valves to ensure efficiency. The equipment also includes a set of tighteners for tidying bottle caps. This set is designed to ensure that the torque is adjusted so that the caps are tightened without being damaged.

The equipment is also equipped with four sets of bottle dialing safety devices with buzzer alarms. This ensures that the filling and capping process only occurs when bottles are present, and there is no risk of overfilling or spillage.

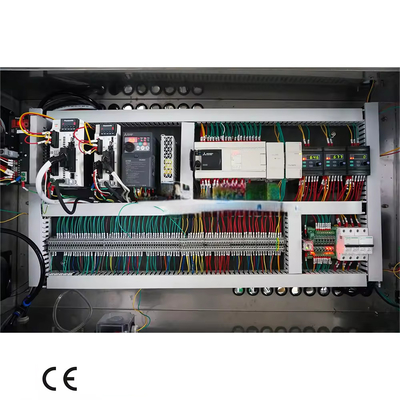

The main engine of the equipment uses advanced frequency conversion speed control technology to ensure smooth and consistent operation. Additionally, imported air filters ensure that the air flow to bottle caps meets the hygienic requirements.

Customization:

The Bottles/Cans Fill And Seal Packing Machine operates on a power supply of 220V/380V, 50Hz/60Hz. The operator interface is a touch screen for easy operation, and safety features include an emergency stop and safety door. The sealing type is a roller sealing, and the packaging type is bottles/cans.

Customization services are available for this canning machine line. You can opt for water producing and canning packing machine line or washing filling capping three in one packing machine line. With these options, you can tailor the machine to your specific needs and requirements.

Support and Services:

This product is equipped with a comprehensive technical support and service system that includes:

• Installation and commissioning services to ensure proper setup and operation of the machine.
• Training services for the machine operators to ensure safe and efficient use of the machine.
• Maintenance and repair services to keep the machine in optimal condition and minimize downtime.
• Technical support services to address any issues or questions that may arise during operation.
• Spare parts and consumables supply services to ensure availability of necessary components.

Our technical team is dedicated to providing timely and effective solutions to ensure maximum productivity and profitability for our customers.

Packing and Shipping:

Product Packaging:

The Bottles / Cans Fill And Seal Packing Machine (NEW) will be packaged in a sturdy wooden crate to ensure safe transport and delivery. The machine will be securely fastened and protected with foam padding to prevent any damage during transit.

Shipping:

The machine will be shipped via a reliable and trusted shipping service, such as DHL, FedEx, or UPS. The shipping cost will be calculated based on the destination address and the weight of the package. The estimated delivery time will depend on the shipping method and the destination country.

FAQ:

Q1: What is the brand name of this fill and seal packing machine?

A1: The brand name of this machine is CHIC.

Q2: Where is this machine manufactured?

A2: This machine is manufactured in China.

Q3: Does this machine have any certifications?

A3: Yes, this machine has ISO and CE certifications.

Q4: What is the minimum order quantity for this product?

A4: The minimum order quantity for this product is 1 piece.

Q5: What is the delivery time for this product?

A5: The delivery time for this product is 50-60 days.

Q6: What kind of products can be packed using this machine?

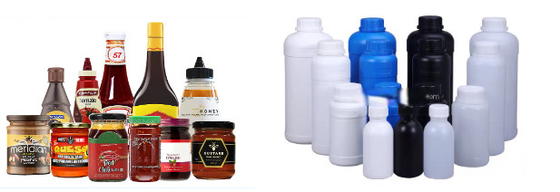

A6: This machine can pack milk, juice, wine, water, food, and detergent sauce.

Q7: How is this machine packaged for shipping?

A7: This machine is packaged in laminated paper cartons for shipping.

Q8: What is the supply ability of this machine?

A8: The supply ability of this machine is dependent on the specific product being packed, but it is capable of packing milk, juice, wine, water, food, and detergent sauce.
