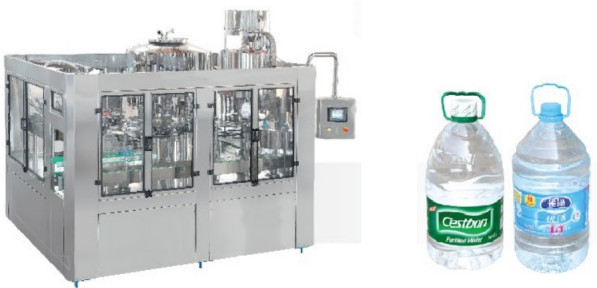

Stainless Steel Touch Screen Bottles Fill Seal Machine Safety Features Roller Sealing Technology

Product Description

The process of producing PET bottled water involves the following steps:

1. Raw water is fed into the system.

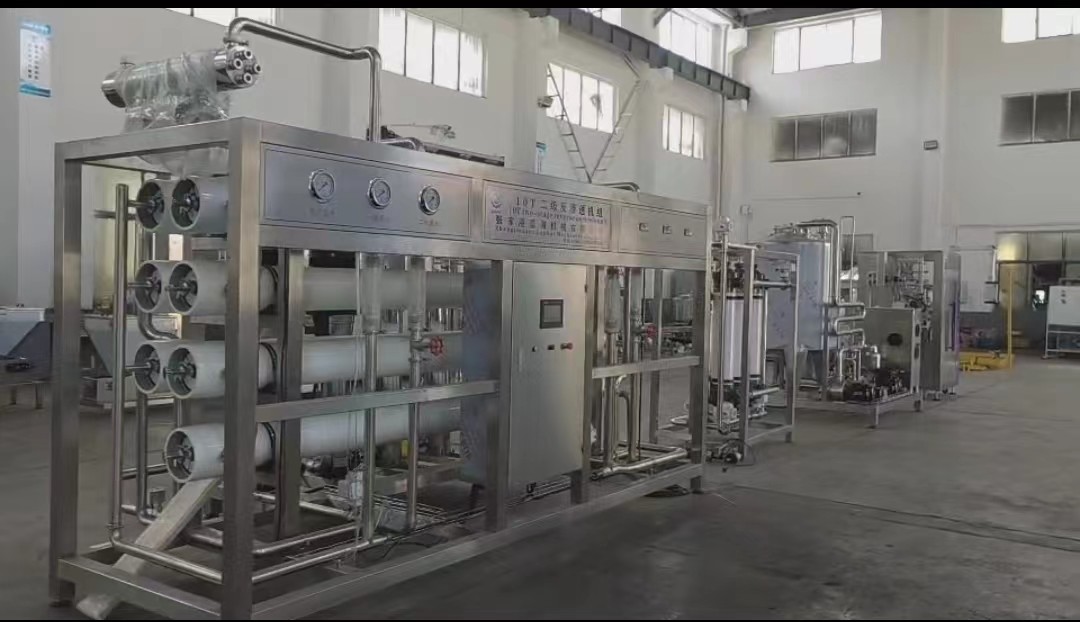

2. The water is then treated using a device that contains ozone for sterilization.
3. The empty bottles are transported to the air passage machine to be prepared for filling.
4. The bottles go through the flushing, filling, and capping machine.
5. The bottle caps are automatically capped by the automatic capping machine.
6. After being filled and capped, the bottles move to the bottle dryer.
7. Once dried, the bottles go through a printing machine and then a lamp inspection.
8. A buffer system for conveying solid bottles is used before the bottled are charged in the bottle dryer membrane charging machine.
9. A manual coding and storage process completes the process.

It should be noted that customers are able to adjust the process to meet their specific needs.

Features

The air duct is positioned on the ground using a scaffold and above it, the fan is installed. In order to avoid dust from being blown into the bottle, air filters are installed at the air inlet of each fan.

The bottle is blocked by suspending it on a bottle plate in the air conveyor and is then moved to the bottle puncher through wind.

High-quality stainless steel is used to manufacture all parts, except for plastic and nylon components like the supporting feet and hanging bottle boards.

Applications

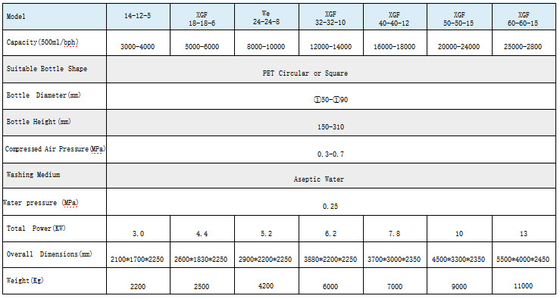

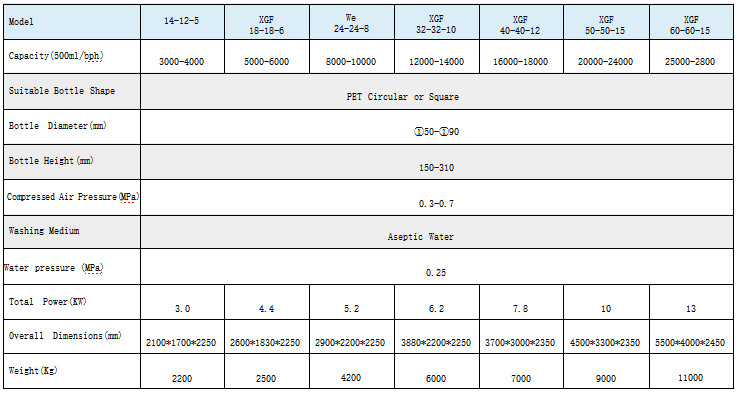

The production capacity of the equipment ranges between 4000-6000 bottles per hour.

The equipment can fill bottles with a capacity between 350-1000 ml.

The equipment uses liquid level positioning to accurately position the bottles.

The equipment is designed to handle PVC and PET plastic bottles with a diameter of 50-100mm and height between 150-320mm.

The equipment is powered by a 3 KW motor, through a triangular belt drive and WPO135 worm reducer with an I-rating of 30:1.

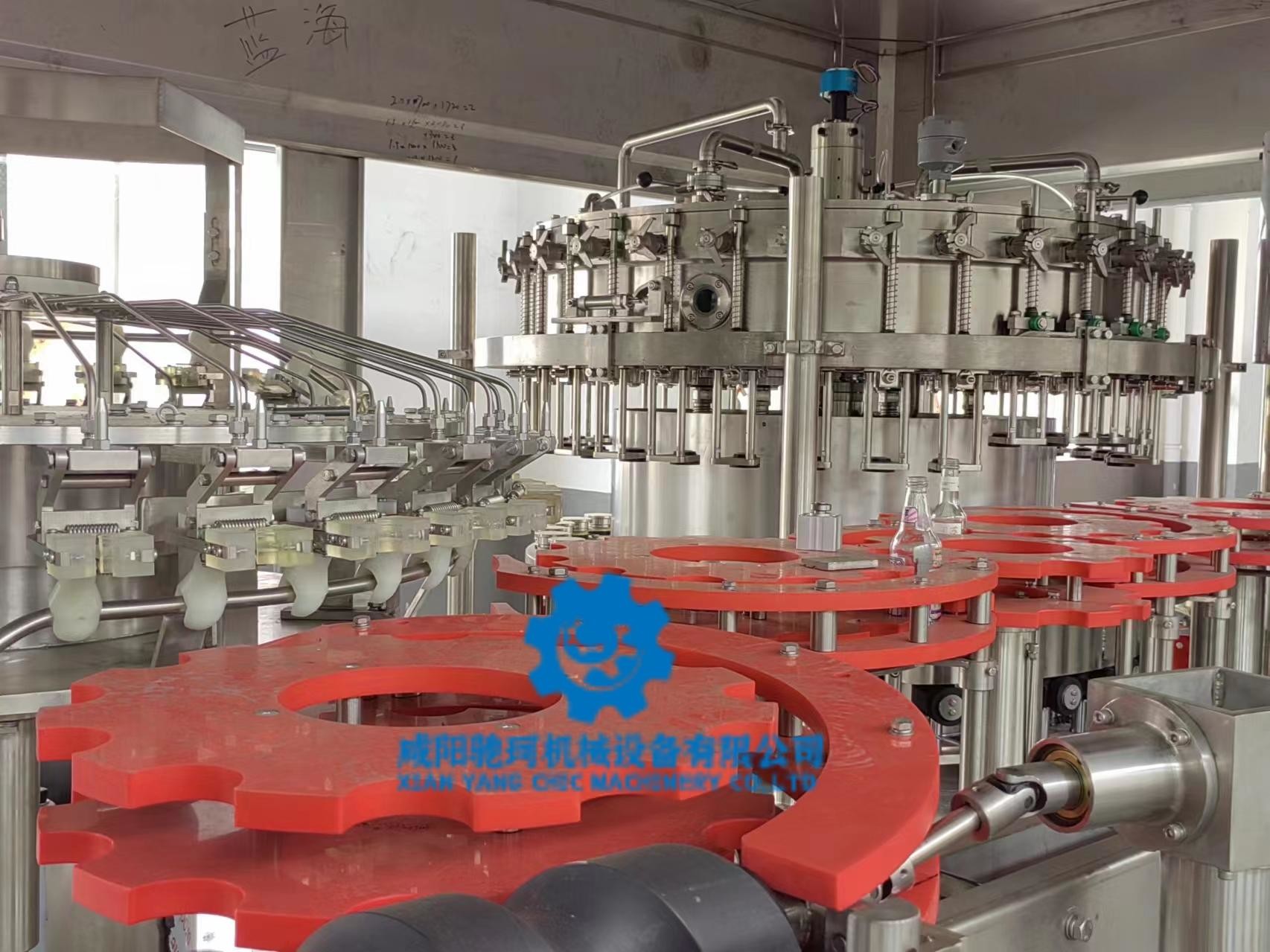

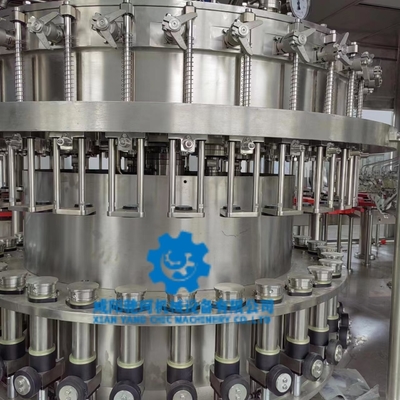

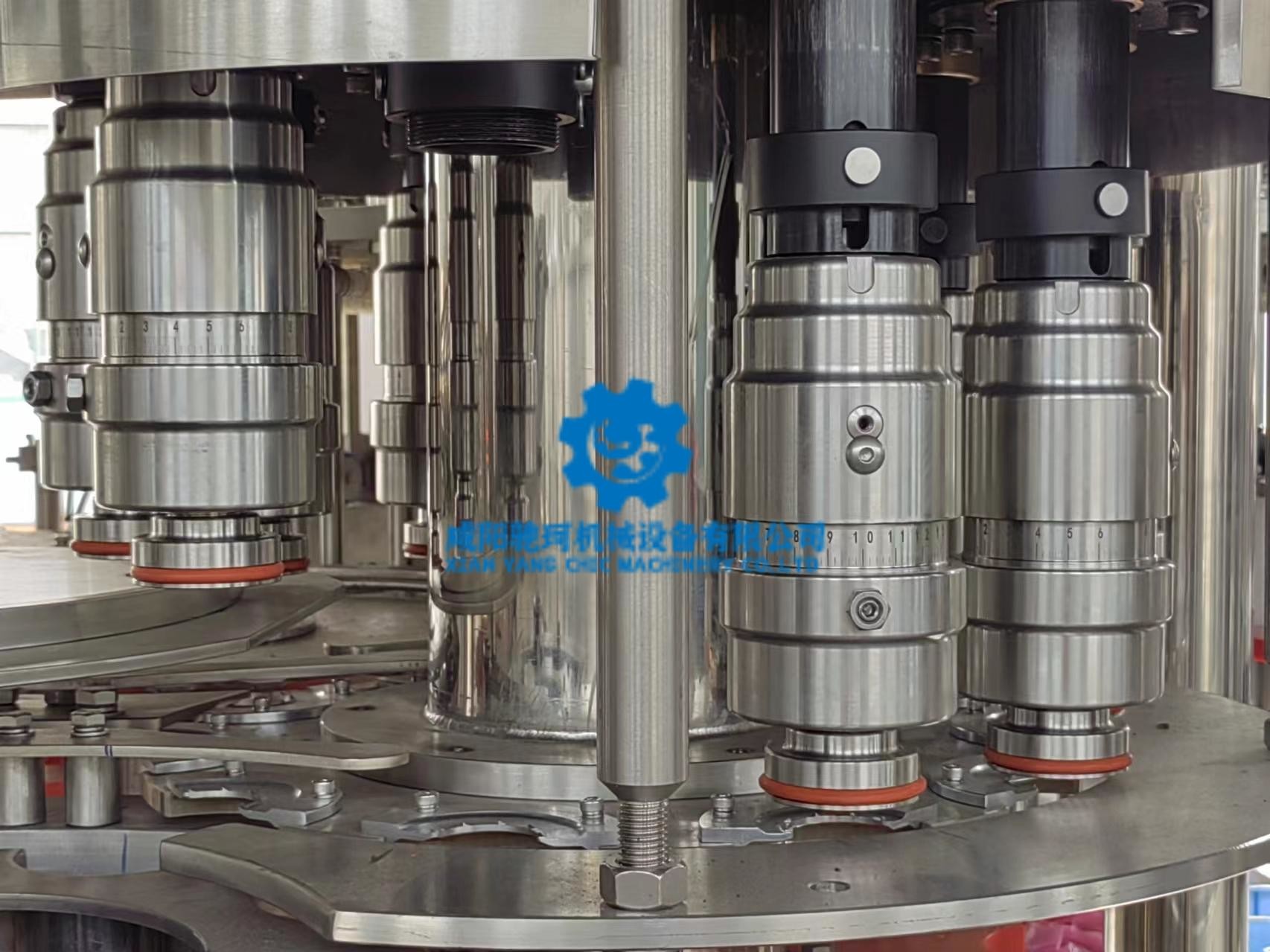

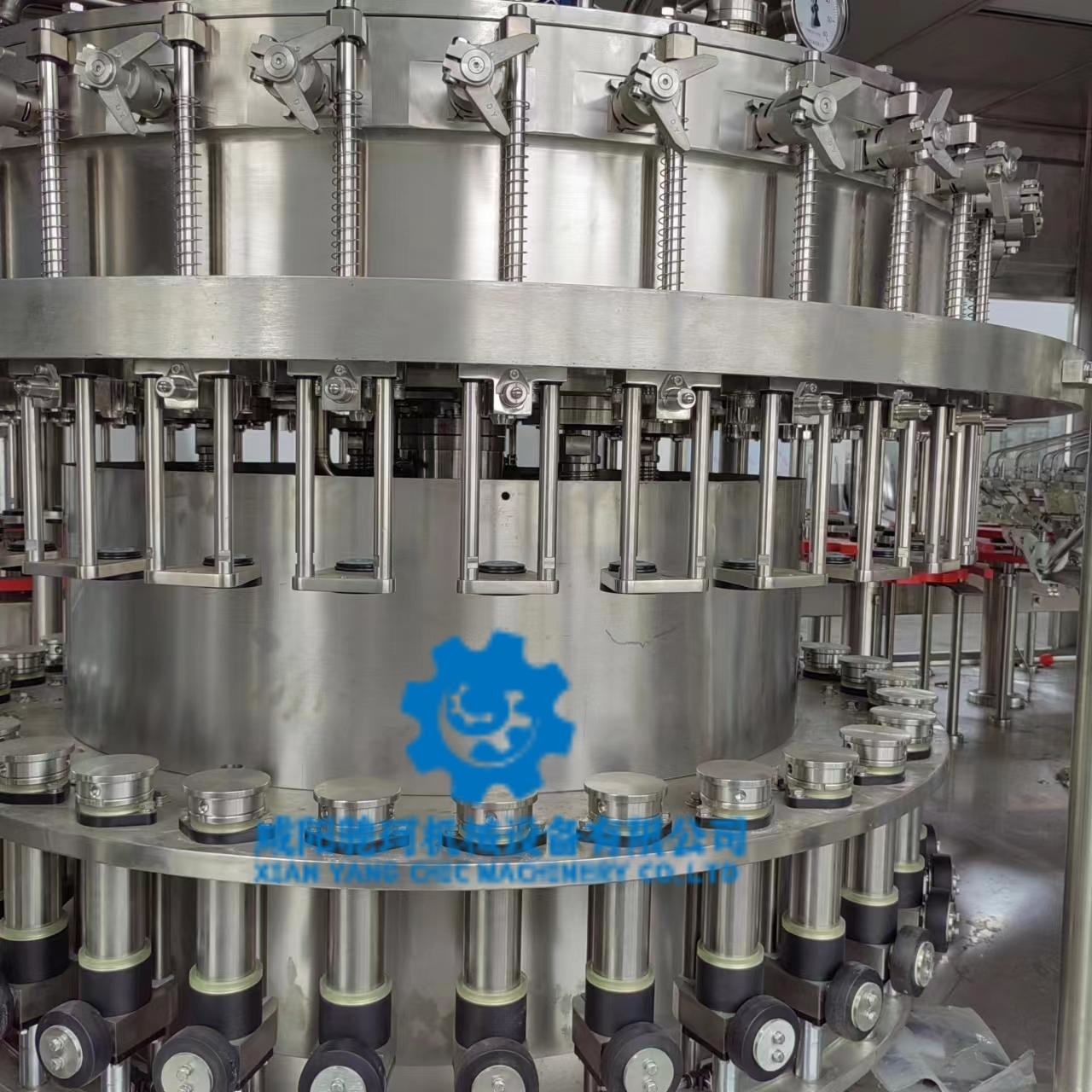

The equipment includes 18 sets of bottle and manipulators for flushing. The bottles are equipped with rotating seals, internal and external flushing, and backwater mechanisms. In addition, there are 18 filling valves and a set of tighteners for tidying bottle caps.

When the torque exceeds the adjusted magnetic force, the cap automatically slips to ensure tightening without damaging the cap. There are four sets of bottle dialing safety devices with a buzzer alarm. The equipment will not fill or cap bottles when there is no bottle in position.

The main engine of the equipment uses advanced frequency conversion speed control technology to ensure smooth operations. Imported, efficient and clean air filters are used to ensure that the air flow to bottle caps meets hygienic requirements.

Customization

Support and Services

The Bottles / Cans Fill And Seal Packing Machine is a state-of-the-art packaging solution designed to efficiently fill and seal bottles and cans with various types of liquid products. Our technical support and services for this product include:

- On-site installation and training services to ensure proper setup and operation of the machine

- Troubleshooting and repair services to address any issues or malfunctions that may arise during operation

- Regular maintenance and check-up services to ensure the machine is running at optimal performance levels

- Upgrades and customization services to tailor the machine to specific product and packaging requirements

Our team of experienced technicians and engineers are available to provide comprehensive technical support and services for the Bottles / Cans Fill And Seal Packing Machine to ensure your production line runs smoothly and efficiently.

Packing and Shipping:

Product Packaging:

• Each Bottles / Cans Fill And Seal Packing Machine will be packaged in a sturdy wooden crate to prevent any damage during transportation.
• The machine will be wrapped in plastic to protect it from dust and moisture.
• Additionally, the wooden crate will be marked with the product name, model number, and any other important information.

Shipping:

• The Bottles / Cans Fill And Seal Packing Machine will be shipped via a reliable transportation company.
• The shipping cost will be included in the final invoice.
• The estimated shipping time will depend on the destination and shipping method selected.
• Customers will be provided with a tracking number to monitor the status of their shipment.

FAQ:

Q: What is the brand name of this packing machine?

A: The brand name of this packing machine is CHIC.

Q: Where is this packing machine made?

A: This packing machine is made in China.

Q: Is this packing machine certified?

A: Yes, this packing machine is certified with ISO and CE.

Q: What is the minimum order quantity for this packing machine?

A: The minimum order quantity for this packing machine is 1 piece.

Q: How is this packing machine packaged for delivery?

A: This packing machine is packaged in laminated paper cartons for delivery.

Q: What is the delivery time for this packing machine?

A: The delivery time for this packing machine is 50-60 days.

Q: What is the supply ability of this packing machine?

A: This packing machine is able to fill and seal bottles and cans of milk, juice, wine, water, food and detergent sauce.
